NPT Taper Male Stud Non Return Valve with Equipped B3 Ring
NPT Taper Male Stud Non Return Valve with Equipped B3 Ring
SKU:VAL-434610
Precision-engineered NPT Taper Male Stud Non Return Valve for optimal hydraulic control at 160 bar pressure. Stainless steel construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
NPT Taper Male Stud Non Return Valve with Equipped B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
NPT Taper Male Stud Non Return Valve with Equipped B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

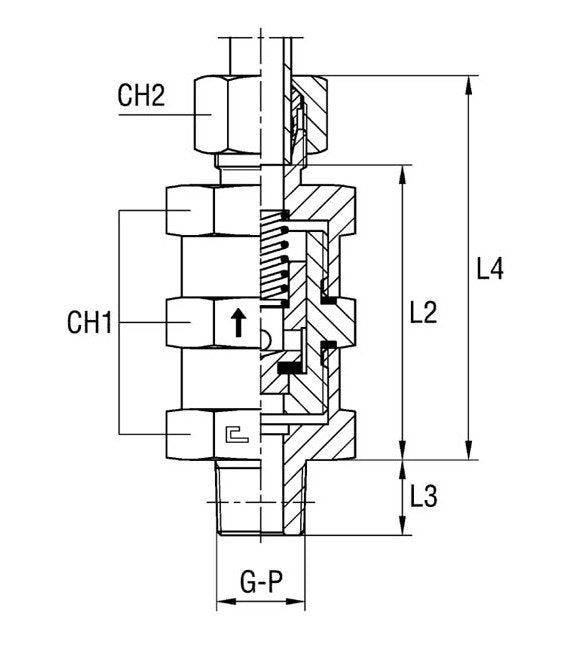

The NPT Taper Male Stud Non Return Valve with Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 160 bar. Constructed from stainless steel, this valve features a tube diameter of 22mm and precise thread sizing for seamless integration. Its compact design, measuring at L2: 72.5mm, L3: 19.0mm, and L4: 88.5mm, enhances functionality without compromising space. With a pass diameter of 16mm and strategic CH1 and CH2 measurements, this valve ensures efficient hydraulic control, making it an ideal choice for institutional hydraulic systems.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
36 mm
Specifications Diameter Pass
16 mm
Specifications L2
72.5 mm
Specifications L3
19.0 mm
Specifications L4
88.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications P Thread Size
3/4
Specifications Tube Diameter
22 mm
Category 6
Male Stud Non Return Valve Thread NPT Taper
