NPT to BSPP Adapter, Female to Male ISO Conversion Fitting
NPT to BSPP Adapter, Female to Male ISO Conversion Fitting
SKU:FIT-cc7384
Seamlessly connect NPT and BSPP threads with Parker's precision-crafted Female NPT to Male BSPP Adapter for high-pressure applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
NPT to BSPP Adapter, Female to Male ISO Conversion Fitting
$24.99
Quantity: 1
Claim Your Seller Account
NPT to BSPP Adapter, Female to Male ISO Conversion Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

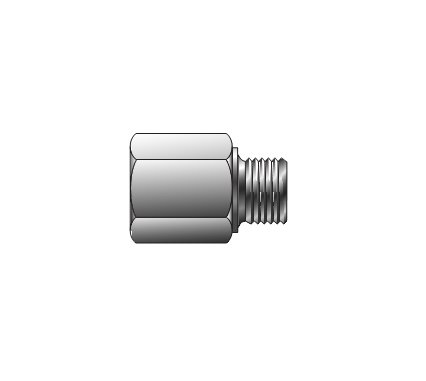

The Female NPT to Male BSPP Adapter from Parker sets the industry standard for precision and quality. This adapter allows seamless connections between components utilizing NPT and ISO Thread configurations. Crafted from stainless steel or brass, this fitting ensures reliable performance under high pressures. Designed for pressure tight joints, it features NPT Thread T1 of 3/4-14 and BSPP Thread T2 of 3/4-14. With a working pressure of up to 4300 psi for stainless steel, this adapter guarantees durability and efficiency. Ensure proper sealing with the included Bonded Seal for BSPP connections.
Product Specifications

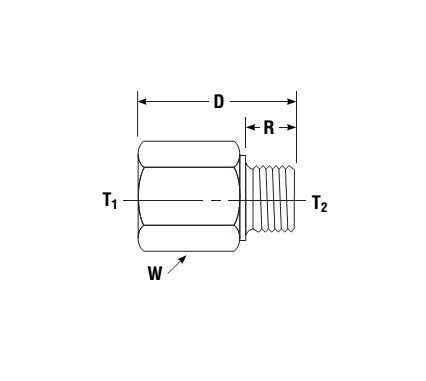

Dimensions Bspp Thread T2
3/4-14
Dimensions Connection Type
FNPT x BSPP
Dimensions D
2.00 in
Dimensions Npt Thread T1
3/4-14
Dimensions R
.63 in
Dimensions Working Pressure Brass
2300 psi | 160 bar
Dimensions Working Pressure Stainless Steel
4300 psi | 300 bar
Dimensions W Hex
1 5/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
