NPTF Flow Control Valve with Check - DRV-20
NPTF Flow Control Valve with Check - DRV-20
SKU:ACC-7f9c64
Achieve precise hydraulic fluid control with the NPTF Flow Control Valve with Check - DRV-20. Operating at pressures up to 5000 psi, this valve ensures safe and repeatable flow regulation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
NPTF Flow Control Valve with Check - DRV-20
$99.99
Quantity: 1
Claim Your Seller Account
NPTF Flow Control Valve with Check - DRV-20
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

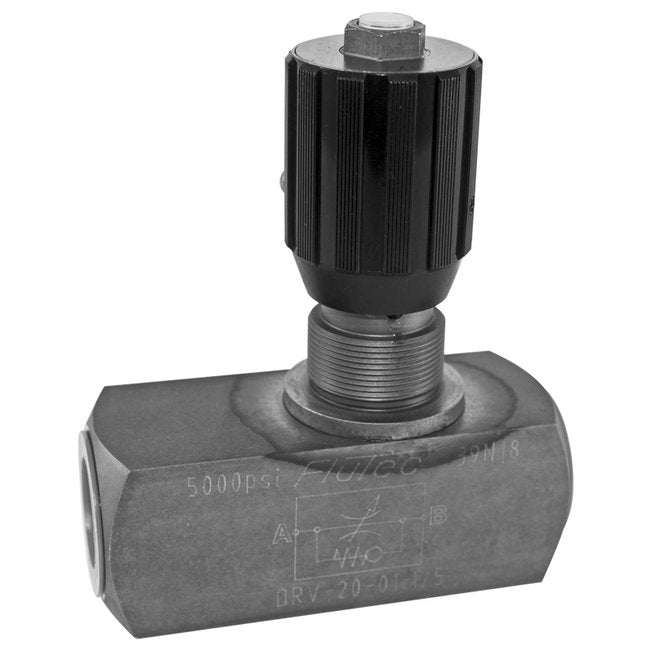

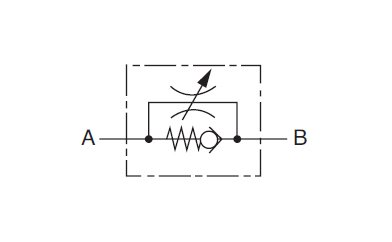

The NPTF Flow Control Valve with Check, model DRV-20-01.X/5, is a precision-engineered hydraulic fluid control solution designed for inline applications with threaded connections. Operating at pressures up to 5000 psi, this valve ensures safe, simple, and repeatable flow regulation. Featuring a micrometer style adjustment knob with a color-coded flow indicator, achieving precise flow adjustments is intuitive and efficient. Crafted from carbon steel with a phosphated finish, this valve meets ANSI standards and offers a nominal size of 1 inch, making it ideal for a wide range of industrial applications.
Product Specifications

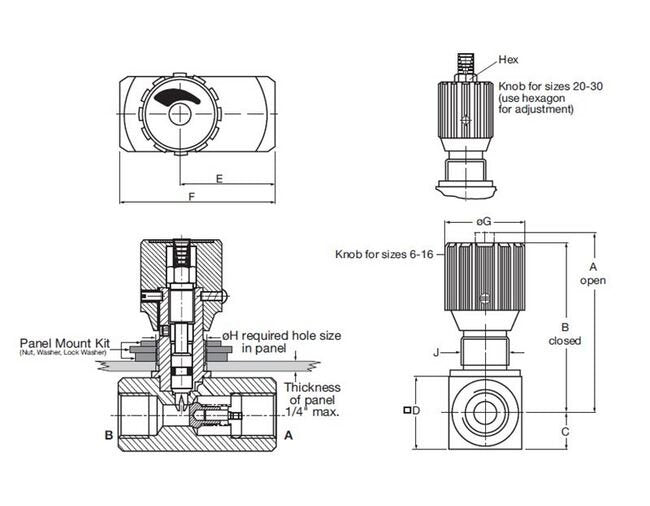

Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.71 in | 145 mm
Dimensions Dimension B
5.04 in | 128 mm
Dimensions Dimension C
0.98 in | 25 mm
Dimensions Dimension D
1.97 in | 50 mm
Dimensions Dimension E
3.03 in | 77 mm
Dimensions Dimension F
5 in | 127 mm
Dimensions Dimension J
Pg 29 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

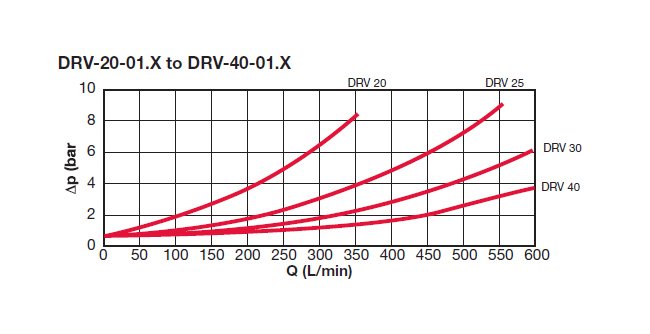

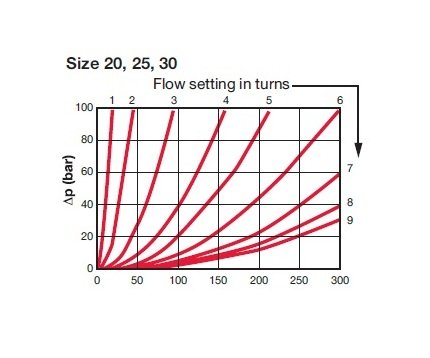

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 in.
Specifications End Type
NPTF
Specifications Finish
Phosphated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-20-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
20
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
2.4 kg | 5.29 lb
