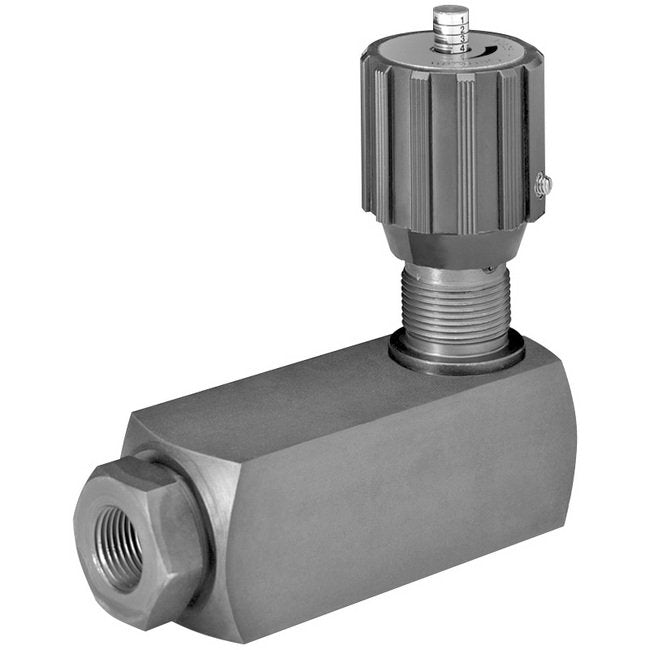

NPTF Pressure Compensated Flow Control Valve with Check
NPTF Pressure Compensated Flow Control Valve with Check
SKU:ACC-a4fe9a
Precision flow control valve with safety features, ANSI compliant, ideal for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NPTF Pressure Compensated Flow Control Valve with Check
$89.99
Quantity: 1
Claim Your Seller Account
NPTF Pressure Compensated Flow Control Valve with Check
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NPTF Pressure Compensated Flow Control Valve with Check offers precise flow control and enhanced safety features, designed for industrial applications. With a durable carbon steel housing and zinc plated finish, it meets ANSI standards for quality assurance. This valve features color-coded spindle for accurate flow control, FPM O-Rings for secure sealing, and provision for panel mounting. Suitable for operating pressures up to 5000 psi and temperatures ranging from -4ºF to 212ºF, this valve ensures reliable performance in varied environments.
Product Specifications
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
0.69 in | 17.5 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.14 in | 29 mm
Specifications Diameter H
0.75 in | 19 mm
Specifications Dimension A
2.91 in | 74 mm
Specifications Dimension F
3.62 in | 92 mm
Specifications Division
ACCESSORIES
Specifications End Size
1/4 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Hex Size
0.94 in | 24 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
SRVR-08-01.X/5-S
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
1/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
1.3 kg | 0.6 lb
Specifications Worksheet Tab Name
Hydac
