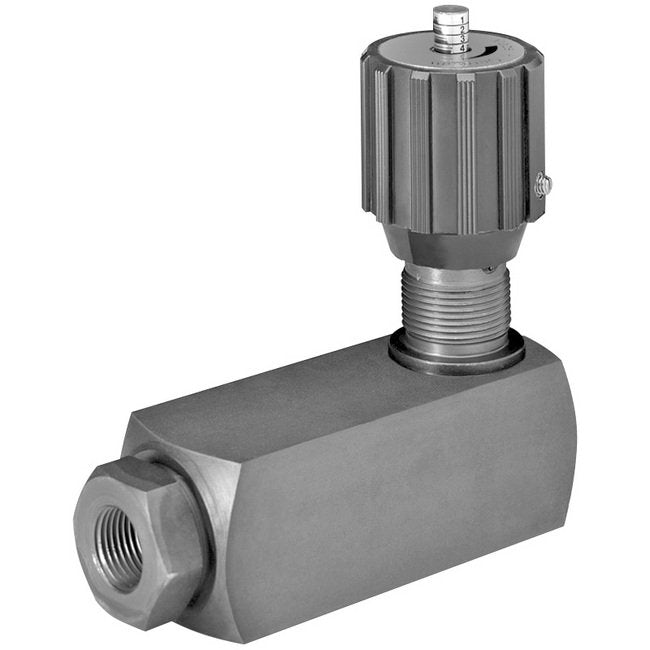

NPTF Pressure Compensated Flow Control Valve with Check - SRVR-08
NPTF Pressure Compensated Flow Control Valve with Check - SRVR-08
SKU:ACC-f68cc0
High-performance NPTF Flow Control Valve with Check for precision applications. ANSI certified, durable construction, and color-coded spindle for accuracy.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
NPTF Pressure Compensated Flow Control Valve with Check - SRVR-08
$199.99
Quantity: 1
Claim Your Seller Account
NPTF Pressure Compensated Flow Control Valve with Check - SRVR-08
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRVR-08 NPTF Pressure Compensated Flow Control Valve with Check is a reliable and durable flow control solution designed for precision and efficiency. With a housing material of carbon steel and ANSI industry certifications, this valve ensures high performance under varying pressures. It features color-coded spindle for accurate flow control, unique safety spindle design, and provision for panel mounting. With dimensions meeting industry standards and operating pressure of 345 bar, this valve is suitable for a wide range of applications requiring precise flow control.
Product Specifications
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
0.71 in | 18 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.50 in | 38 mm
Specifications Diameter H
0.91 in | 23 mm
Specifications Dimension A
3.62 in | 92 mm
Specifications Dimension F
4.13 in | 105 mm
Specifications Division
ACCESSORIES
Specifications End Size
3/8 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Hex Size
1.06 in | 27 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
SRVR-10-01.X/5-S
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
3/8 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
2.0 kg | 0.9 lb
Specifications Worksheet Tab Name
Hydac
