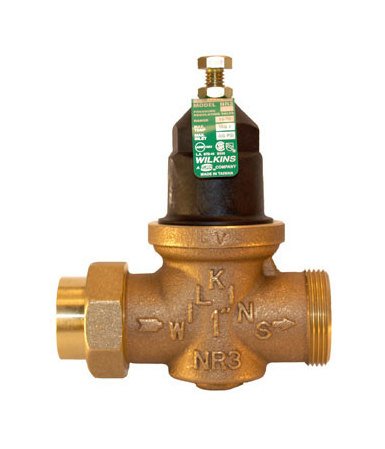

NR3 Water Pressure Reducing Valve with Strainer
NR3 Water Pressure Reducing Valve with Strainer
SKU:REG-6cc244
Ensure precise water pressure control with the NR3 Reducing Valve for potable water systems. ASSE Listed with integral strainer and smooth balance piston design.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
NR3 Water Pressure Reducing Valve with Strainer
$129.99
Quantity: 1
Claim Your Seller Account
NR3 Water Pressure Reducing Valve with Strainer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NR3 Water Pressure Reducing Valve with Integral By-pass Check Valve and Strainer is designed for potable water lines, reducing high inlet pressure to a lower outlet pressure. Its integral strainer is ideal for systems requiring frequent cleaning. Featuring an integral by-pass design to prevent excessive pressure buildup and a balance piston for smooth reaction to flow changes, this ASSE Listed 1003 valve ensures precise pressure control and system protection. Constructed with cast bronze, stainless steel internals, and EPDM elastomers, it offers durability and reliability.
Product Specifications
Specifications Accessories
BR4DUSPC, Special Plastic Spacer Nipple | BR4DUSPC, Steel Pipe | item-5277, Repair Kit | NR3DUSPC, Steel Pipe | NR3DUSPC, Steel Pipe | TPK, Tailpiece Kit
Specifications Bell Housing
UV resistant polymer composite
Specifications Cartridge
Delrin⢠(NSF Listed)
Specifications Cold Water Rated Temperature At 400 Psi Cpvc Tail
73.4 ºF
Specifications Copper Connections Fc
ANSI B16.22
Specifications Elastomers
EPDM (FDA approved)Buna nitrile (FDA approved)
Specifications Factory Preset
50 psi
Specifications Internals
Stainless steel, 300 Series
Specifications Main Valve Body
Cast bronze ASTM B 584, UNS C84400
Specifications Maximum Hot Water Temperature At 100 Psi Cpvc Tai
140 ºF
Specifications Maximum Working Water Pressure
300 psi (1 1/2" - 2") | 400 psi (1/2" - 1 1/4")
Specifications Maximum Working Water Temperature
140 ºF
Specifications Minimum Inlet Pressure As Per Upc Code
80 psi
Specifications Options
C - With FC (Copper Sweat) Union Connection | CPVC - CPVC tailpiece connection (1") | DM - With Double Male 3/4" & 1" Meter Threads Connection | DMSS - DM with SS Spring & Sealed Cage | DU - With Double Union Connection (FNPT) | G - Tapped with Gauge | HRSC - High Range 15-150 PSI (1/2"-1 1/4" only) with Sealed Cage | LU - With Integral FNPT Connection (No union) | P - Tapped and Plugged for Gauge | PEX - With Male Barbed Connection Tailpiece for Crossed-linked Polyethylene Tubing | SC - With SS Adjustment Bolt and Lock Nut, with SS Spring for below-ground Installations | Standard with Single Union FNPT Connection and 20 Mesh Strainer Screen
Specifications Reduced Pressure Range
15 to 75 psi (1/2" - 1 1/4") | 25 to 75 psi (1 1/2" - 2")
Specifications Size
1/2 in | 3/4 in | 1 in | 1 1/4 in | 1 1/2 in | 2 in
Specifications Springs
Oil temp wire, ASTM A 229
Specifications Stem
Brass ASTM B 16
Specifications Strainer Screen
300 Series Stainless Steel
Specifications Threaded Connections Fnpt
ANSI B1.20.1
