Nuclear Wiring Conduit LFMC - Type NWC
Nuclear Wiring Conduit LFMC - Type NWC
SKU:LIQ-4ab185
Flexible Nuclear Wiring Conduit with IP67 rating. Radiation-resistant black jacket for extreme conditions. Easy to install in nuclear containment areas.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Nuclear Wiring Conduit LFMC - Type NWC
$249.99
Quantity: 1
Claim Your Seller Account
Nuclear Wiring Conduit LFMC - Type NWC
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

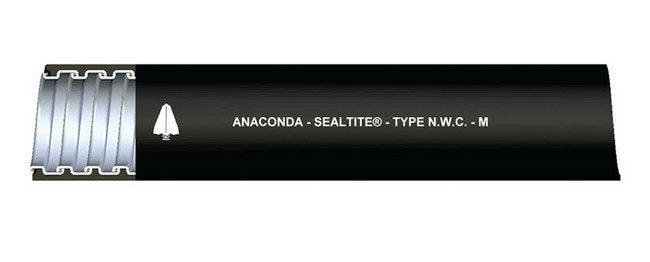

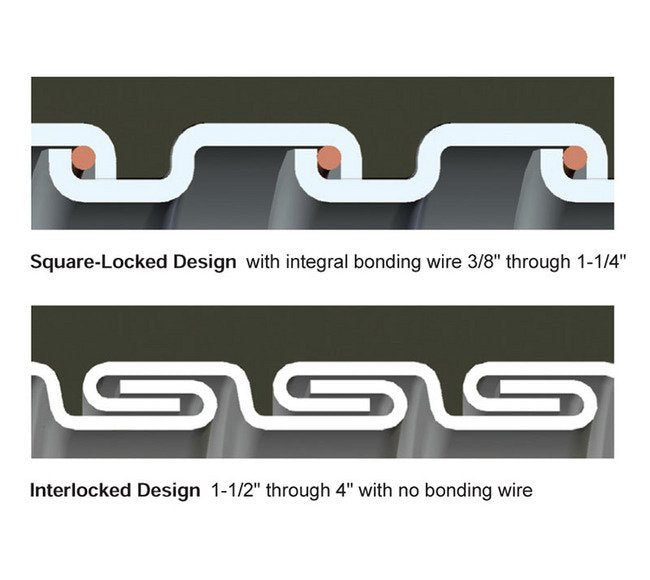

The Nuclear Wiring Conduit Type NWC is a flexible and liquid-tight solution for wiring in nuclear applications. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a radiation-resistant black jacket, this conduit meets IEEE standards for reliability. With an IP 67 rating and temperature range from -40ºF to +192ºF, it offers durable protection in extreme conditions. Suitable for nuclear containment areas, it comes in a range of sizes and is easy to install with standard liquid-tight connectors.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
24 in | 609.6 mm
Specifications Approx Weight Per 100 Ft
182 lbs | 82.55 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
2-1/2 in | 63 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.480 to 2.505 in | 62.992 to 63.627 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
25 ft | 7.62 m
Specifications Outside Diameter
2.840 to 2.875 in | 72.136 to 73.025 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
