Nuclear Wiring Conduit LFMC - Type NWC
Nuclear Wiring Conduit LFMC - Type NWC
SKU:LIQ-3a8886
Ensure radiation protection with the Nuclear Wiring Conduit LFMC - Type NWC. Flexible, liquid-tight solution for nuclear applications. Easy to install.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
Nuclear Wiring Conduit LFMC - Type NWC
$229.99
Quantity: 1
Claim Your Seller Account
Nuclear Wiring Conduit LFMC - Type NWC
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

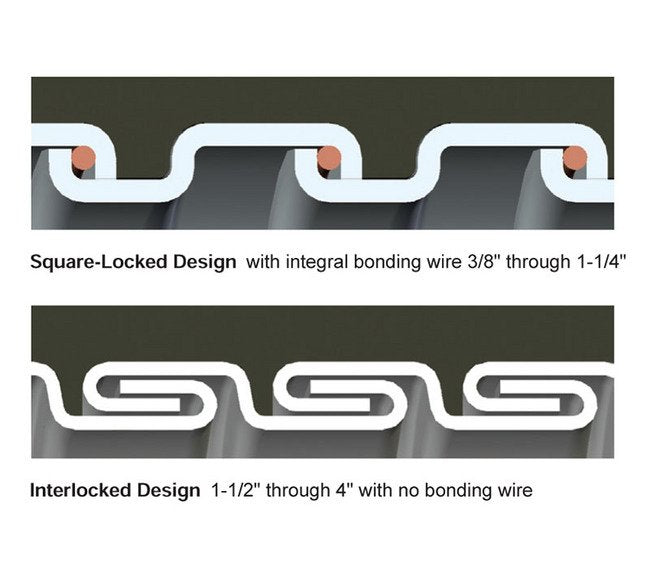

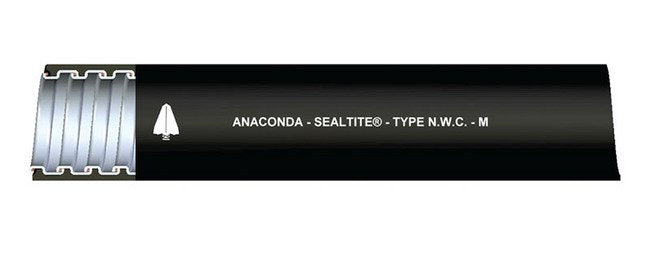

The Nuclear Wiring Conduit LFMC, Type NWC, is designed to provide a flexible liquid-tight raceway for wiring in nuclear applications. With a chlorinated polyethylene jacket, this conduit features continuously interlocked hot dipped zinc galvanized steel core with an integral bonding wire. It meets radiation-resistant standards, IEEE guidelines, and has an IP 66/67 rating for Ingress Protection. Suitable for use within nuclear containment areas, it offers a temperature range of -40ºF to +192ºF. Available in various sizes, this conduit ensures durability and easy installation using standard liquid-tight connectors.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
13 in | 330.2 mm
Specifications Approx Weight Per 100 Ft
44 lbs | 19.96 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
