Nuclear Wiring Conduit LFMC - Type NWC, 1-1/2"
Nuclear Wiring Conduit LFMC - Type NWC, 1-1/2"
SKU:LIQ-4fbdc4
Premium nuclear wiring conduit for radiation protection, IP 66/67 rated, flexible, and durable. Meets IEEE standards. Ideal for nuclear applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Nuclear Wiring Conduit LFMC - Type NWC, 1-1/2"
$349.99
Quantity: 1
Claim Your Seller Account
Nuclear Wiring Conduit LFMC - Type NWC, 1-1/2"
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

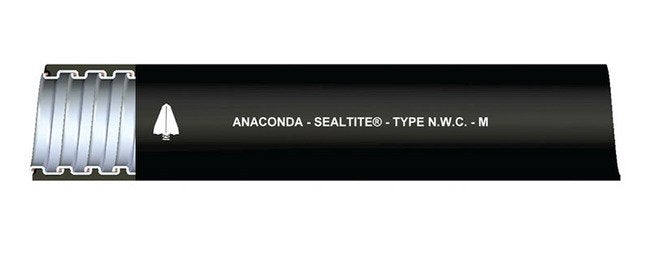

The Nuclear Wiring Conduit LFMC - Type NWC is a premium liquid-tight flexible metal conduit designed for nuclear applications and areas requiring radiation protection. Constructed with a galvanized steel core and a radiation-resistant black polyethylene jacket, this conduit offers a flexible and reliable solution for wiring needs. Meeting stringent standards such as IEEE 323-1974 and IEEE 383-1974, it provides IP 66/67 rated protection and operates in a temperature range of -40ºF to +192ºF. Suitable for use within nuclear containment areas, this conduit comes in a length of 50 ft and is compatible with standard liquid-tight connectors for easy installation.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0

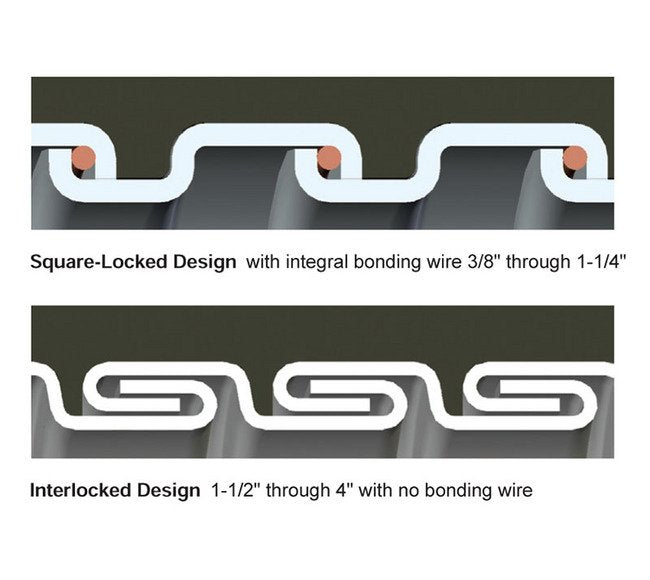

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
20 in | 508 mm
Specifications Approx Weight Per 100 Ft
112 lbs | 50.8 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
