Nuclear Wiring Conduit LFMC - Type NWC, 2in, 50ft - Radiation-Resistant
Nuclear Wiring Conduit LFMC - Type NWC, 2in, 50ft - Radiation-Resistant
SKU:LIQ-566821
Flexible Nuclear Wiring Conduit LFMC - Type NWC, 2in, 50ft - Radiation-Resistant, IP 67 Rated
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Nuclear Wiring Conduit LFMC - Type NWC, 2in, 50ft - Radiation-Resistant
$259.99
Quantity: 1
Claim Your Seller Account
Nuclear Wiring Conduit LFMC - Type NWC, 2in, 50ft - Radiation-Resistant
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

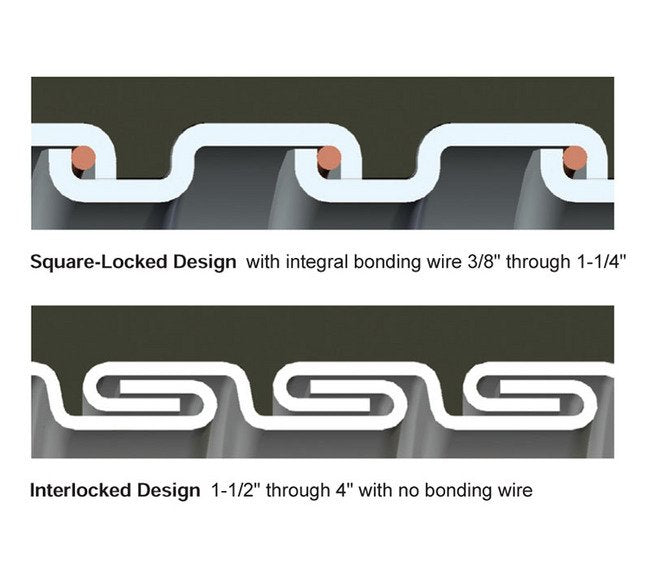

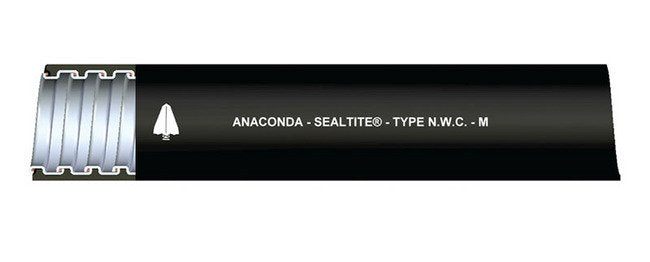

The Nuclear Wiring Conduit LFMC, Type NWC, offers a flexible and liquid-tight raceway for wiring. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and radiation-resistant black jacket meeting IEEE standards. Suitable for nuclear applications, it comes in 2in diameter, 50ft length, with IP 67 protection, and a temperature range of -40ºF to +192ºF. Compliant with NUPIC standards, ideal for use in areas requiring radiation protection.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
22 in | 558.8 mm
Specifications Approx Weight Per 100 Ft
148 lbs | 67.13 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
