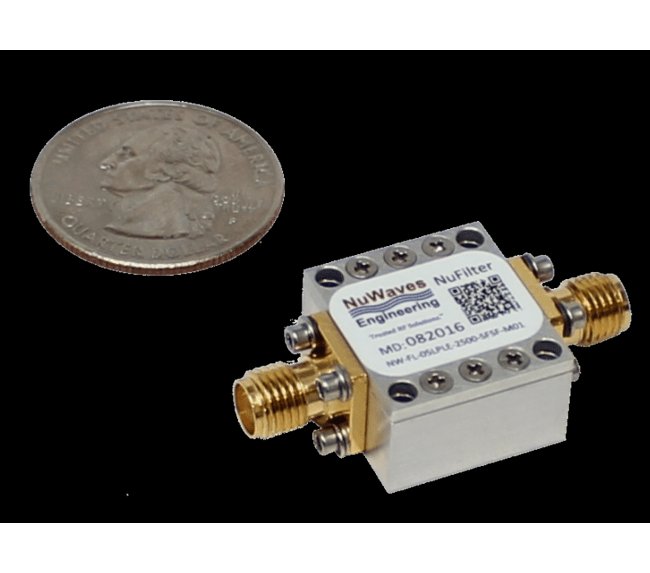

NuWaves’ NuFilter™ 05LPLE-2500-SFSF-M01 harmonic filter is a low-cost, miniature, low-pass RF filter designed to reduce harmonics at the output of transmitters operating at up through S-Band. The 05LPLE-2500-SFSF-M01 miniature harmonic filter provides superior harmonic filtering, as demonstrated by the rejections levels of greater than 25 dB from 3.25 GHz to 5 GHz. This high-performance module accepts input power levels up to 50 W, with only a minimal 0.5 dB of insertion loss in the passband frequency range of DC to 2500 MHz. With standard SMA connectors, the NuFilter can quickly and easily be added to an RF system. NuWaves’ NuFilter™ removes the time and cost burden of creating a design, laying out a PCB, buying parts, assembling, and testing. Allow NuWaves to save you time and money by outsourcing your filtering needs.

Product Specifications

Specifications Export Classification

EAR99

Specifications Insertion Loss Passband Typ

0.3 to 0.6 dB

Specifications Maximum Frequency

2500 MHz

Specifications Minimum Frequency

Specifications Rf Power Handling Passband

50 W
