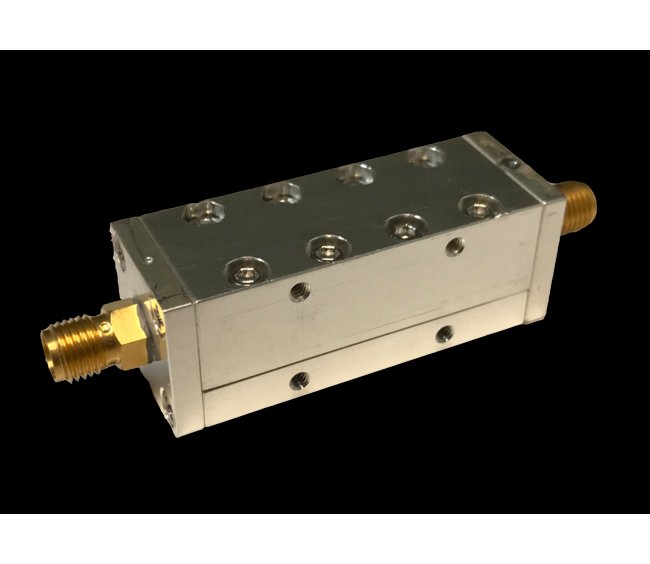

Nufilter™ 05LPLE-6000 Miniature Harmonic Filter

Name: Nufilter™ 05LPLE-6000 Miniature Harmonic Filter
Brand: NuWaves RF Solutions
SKU: NUF-30ddf5
Price: 49.99 USD
Availability: OutOfStock

SKU:NUF-30ddf5

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

NuWaves’ NuFilter™ 05LPLE-6000-SFSF-M01 harmonic filter is a low-cost, miniature, low-pass RF filter designed to reduce harmonics at the output of transmitters operating at up through S-Band. The 05LPLE-6000-SFSF-M01 miniature harmonic filter provides superior harmonic filtering, as demonstrated by the rejections levels of greater than 20 dB from 8 GHz to 10 GHz. This high-performance module accepts input power levels up to 50 W, with only a minimal 0.75 dB of insertion loss in the passband frequency range of 2500 to 6000 MHz. With standard SMA connectors, the NuFilter can quickly and easily be added to any RF system. NuWaves’ NuFilter™ removes the time and cost burden of creating a design, laying out a PCB, buying parts, assembling, and testing. Allow NuWaves to save you time and money by outsourcing your filtering needs.

Product Specifications

Specifications Export Classification

EAR99

Specifications Insertion Loss Passband Typ

0.3 to 0.6 dB

Specifications Maximum Frequency

6000 MHz

Specifications Minimum Frequency

2500 MHz

Specifications Rf Power Handling Passband

50 W
