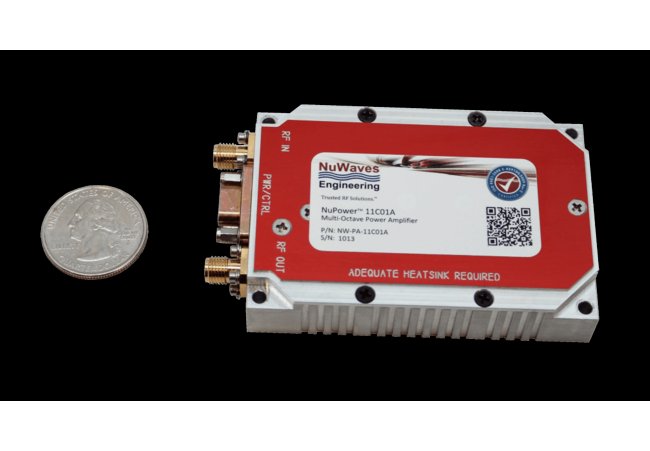

The NuPower™ 11C01A Multi-Octave Power Amplifier (MOPA) utilizes GaN technology to deliver 15 watts of RF power for CW and near-constant-envelope waveforms from 225 MHz to 2400 MHz, covering VHF, UHF, L-band and S-band frequencies. Based on the latest Gallium Nitride (GaN) technology, the NuPower 11C01A’s 25% to 45% power efficiency and 3.9 cubic inch form factor brings state-of-the-art power amplifier technology to the warfighter, meeting present challenges in size, weight, and power (SWaP) reduction. The NuPower 11C01A is ideal for broadband RF telemetry and tactical communication systems that require high reliability and high efficiency in a very compact housing. All NuPower PAs come standard with a Micro-D connector with 18″ flying leads for interfacing to the unit. Available options for the PA include fan-cooled heat sink, and an interface cable with banana plug terminations for lab testing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
40 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
11 - 32
Specifications Maximum Frequency
2400 MHz
Specifications Minimum Frequency
225 MHz
Specifications Output Power Typ
15 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.00 x 2.00 x 0.65 Inch
Specifications Weight
3 oz
