NuPower™ 12A01A Power Amplifier
NuPower™ 12A01A Power Amplifier
SKU:NUP-2a4948
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ 12A01A Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ 12A01A Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

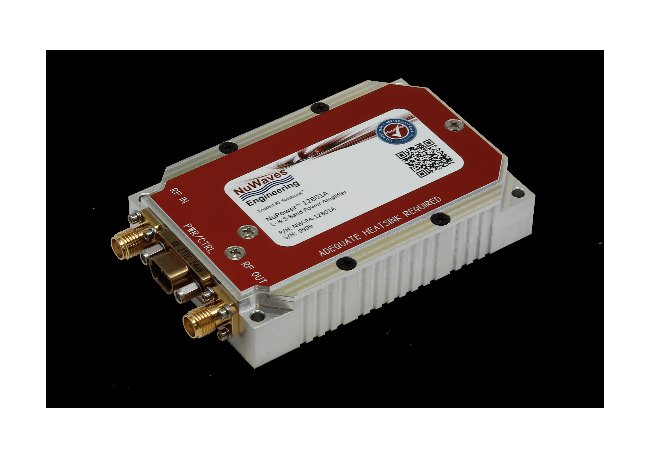

The NuPower™ 12A01A L- & S-Band Power Amplifier is a small, highly efficient solid-state power amplifier module that provides 4 watts of linear RF power to boost performance of data links and transmitters. Based on the latest gallium nitride (GaN) technology, this broadband linear RF power amplifier provides greater than 20% power efficiency and has a 3.9 in3 form factor whih make it ideal for size, weight, and power-constrained broadband RF telemetry and tactical communication systems. The NuPower 12A01A power amplifier accepts a nominal 0 dBm RF input and provides 36 dB of gain from 1000 MHz to 2500 MHz. All NuPower PAs come standard with a Micro-D cable assembly with 18″ flying leads for interfacing to the unit. Also available is an accessory kit which includes a 28 VDC fan-cooled heat sink with requisite power cable, and an upgraded module interface cable with banana plug terminations for lab testing.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
40 dB
Specifications Input Drive
0 dBM | 30 dBM
Specifications Input Supply
26 - 30
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
1000 MHz
Specifications Output Power Typ
16 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.00 x 2.00 x 0.65 Inch
Specifications Weight
3 oz
