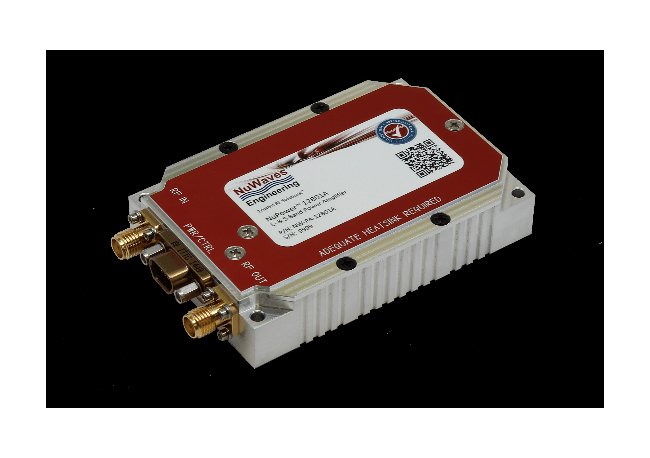

The NuPower™ 12B01A-04 L-Band Power Amplifier is a broadband, high-performance solid-state power amplifier module that delivers at least 11 watts of RF power for CW and near-constant-envelope waveforms in L-band frequencies of 1.435 GHz to 1.850 GHz from a very small package. The NuPower module accepts a nominal 0 dBm input drive level from the transmitter/transceiver and provides 40 dB of gain to generate at least 10 watts, and typically 15 watts, across the entire operating band. With a small form factor (3.9 cubic inches) and high efficiency operation (30% to 50%) based on state-of-the-art Gallium Nitride (GaN) power amplifier device technology, the NuPower L- & S-Band PA module is ideal for broadband RF telemetry and military communication systems that require reliability and minimal size, weight, and power consumption (SWaP). All NuPower PAs come standard with a Micro-D connector with 18″ flying leads for interfacing to the unit. Available options for the PA include a +30 dBm / 1 W input drive level version (P/N: NW-PA-12B01A-D30), a fan-cooled heat sink, and an interface cable with banana plug terminations for lab testing.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
42 dB
Specifications Input Drive
0 dBM | 30 dBM
Specifications Input Supply
11 - 32
Specifications Maximum Frequency
1850 MHz
Specifications Minimum Frequency
1435 MHz
Specifications Output Power Typ
15 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.00 x 2.00 x 0.65 Inch
Specifications Weight
3 oz
