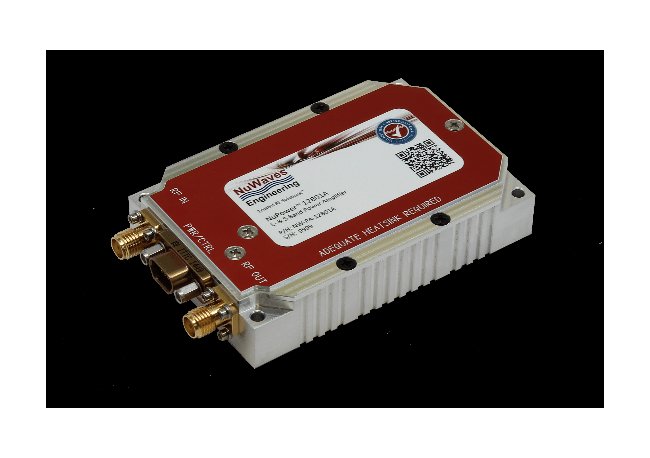

NuPower™ 12B01A-D30 Power Amplifier
NuPower™ 12B01A-D30 Power Amplifier
SKU:NUP-3e9155
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ 12B01A-D30 Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ 12B01A-D30 Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NuPower™ 12B01A-D30 L- & S-Band Power Amplifier is a broadband, high-performance solid-state power amplifier module that delivers 20 watts of RF power for CW and near-constant-envelope waveforms in L- and S-band frequencies of 1.0 GHz to 2.5 GHz from a very small package. The NuPower 12B01A-D30 module accepts a nominal +30 dBm input drive level from the transmitter/transceiver and provides 10 dB of gain to generate 20 watts (typ) RF Output Power, across the entire operating band. With a small form factor (3.9 cubic inches) and high efficiency operation (30% to 50%) based on state-of-the-art Gallium Nitride (GaN) power amplifier device technology, the NuPower L- & S-Band PA module is ideal for broadband RF telemetry and military communication systems that require reliability and minimal size, weight, and power consumption (SWaP). All NuPower PAs come standard with a Micro-D connector with 18″ flying leads for interfacing to the unit. An available option for the PA is an accessory kit (p/n NW-PA-ACC-KT01), which includes a fan-cooled heat sink and an interface cable assembly with banana plug terminations for lab testing. *Please see the NuPower 12B01A if your system needs a PA with the standard 0 dBm input drive level.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
12 dB
Specifications Input Drive
30 dBM
Specifications Input Supply
11 - 32
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
1000 MHz
Specifications Output Power Typ
20 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.00 x 2.00 x 0.65 Inch
Specifications Weight
3 oz
