NuPower™ 12D05A Power Amplifier
NuPower™ 12D05A Power Amplifier
SKU:NUP-d254db
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ 12D05A Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ 12D05A Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

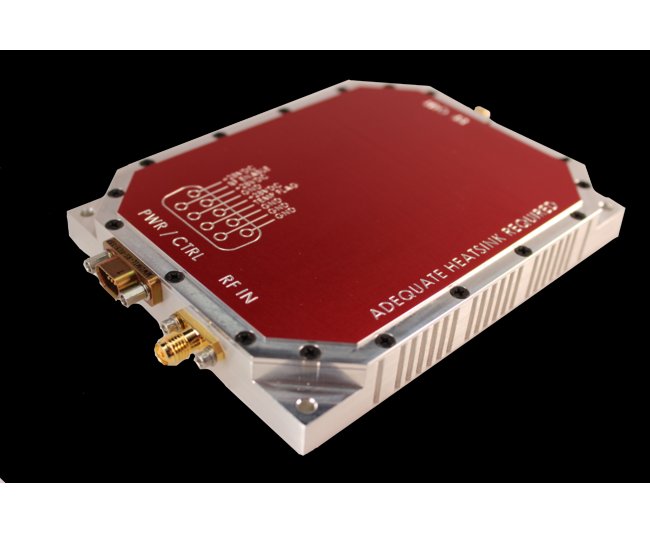

The NuPower™ 12D05A is a small, highly efficient, connectorized solid state power amplifier that delivers up to 35 watts of RF power from 1700 to 2400 MHz to extend the operational range of data links and transmitters. The NuPower 12D05A L- & S-Band Power Amplifier accepts a nominal 0 dBm (1 mW) RF input and provides 44 dB of gain from 1700 MHz to 2400 MHz for continuous wave (CW) and near-constant-envelope waveforms. Based on the latest gallium nitride (GaN) technology, the NuPower 12D05A’s 40% power efficiency and NuPower PAs feature over-voltage and protection and can operate over a wide temperature range of -40 °C to +85 °C (baseplate). Extend your operational communication range with NuPower™ amplifiers from NuWaves Engineering.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
45 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
27 - 30
Specifications Maximum Frequency
2400 MHz
Specifications Minimum Frequency
1700 MHz
Specifications Output Power Typ
35 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
4.50 x 3.50 x 0.61 Inch
Specifications Weight
9 oz
