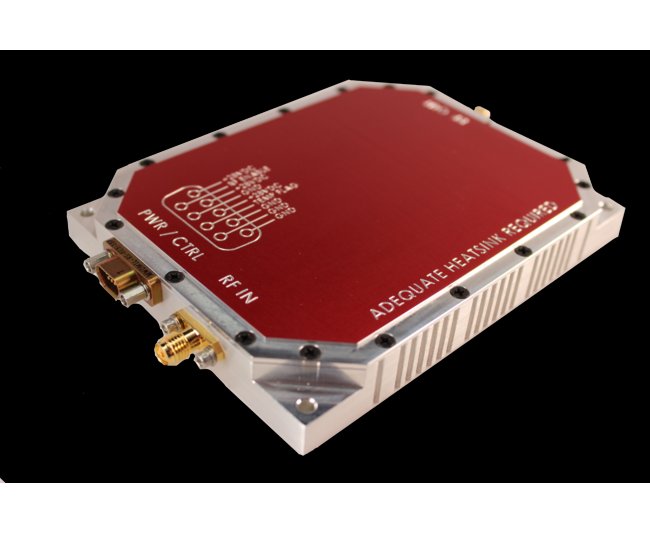

The NuPower™ 15D05A-C01-S01 L- & S-Band Power Amplifier is a small, highly efficient, connectorized solid state power amplifier that delivers over 20 watts of RF power from 800 to 2500 MHz to extend the operational range of data links and transmitters. The NuPower 15D05A-C01-S01 L- & S-Band Power Amplifier accepts a nominal 0 dBm (1 mW) RF input and provides 44 dB of gain from 800 MHz to 2500 MHz for continuous wave (CW) and near-constant-envelope waveforms. Based on the latest gallium nitride (GaN) technology, NuPower 15D05A’s 25% power efficiency at rated power and NuPower PAs feature over-voltage protection and can operate over a wide temperature range of -40 °C to +85 °C (baseplate). All NuPower PAs come standard with a Micro-D cable assembly with 18″ flying leads for interfacing to the unit. Also available is an accessory kit which includes a 28 VDC fan-cooled heat sink and an upgraded interface cable with banana plug terminations for lab testing.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
44 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
27 - 30
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
800 MHz
Specifications Output Power Typ
20 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
4.50 x 3.50 x 0.61 Inch
Specifications Weight
9 oz
