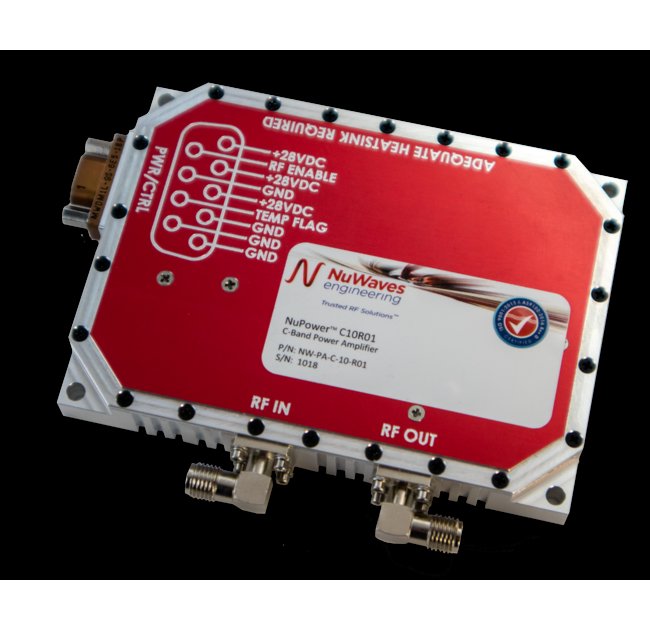

The NuPower™ C10R01 is a small, highly efficient, solid state power amplifier that provides 10 watts of RF power across the 5100 to 5900 MHz frequency range to boost performance of data links and transmitters for communications range extension, electronic warfare (e.g. electronic attack), etc. The NuPower™ C10R01 is a small, highly efficient, solid state power amplifier that provides 10 watts of RF power across the 5100 to 5900 MHz frequency range to boost performance of data links and transmitters. The NuPower C10R01 accepts a nominal 0 dBm RF input and provides 40 dB of gain from 5100 to 5900 MHz for continuous wave (CW) and near-constant envelope waveforms. Based on the latest gallium nitride (GaN) technology, the NuPower C10R01’s power efficiency and form factor make it ideal for size, weight, and power-constrained broadband RF telemetry, tactical communication systems, and electronic warfare systems. NuPower PA’s feature over-voltage protection and can operate over a wide temperature range of -40 oC to +85 oC (baseplate). The NuPower C10R01-AH supports an active high (inverted) logic.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
40 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
27 - 32
Specifications Maximum Frequency
5900 MHz
Specifications Minimum Frequency
5100 MHz
Specifications Output Power Typ
10 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.57 x 2.57 x 0.50 Inch
Specifications Weight
2.6 oz
