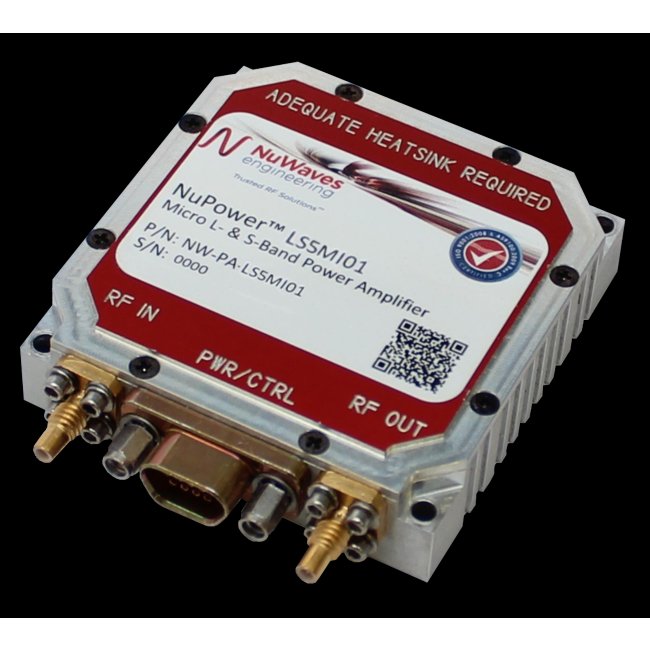

The NuPower™ LS5MI01 Micro L- & S-band radio frequency (RF) power amplifier boasts the industry’s smallest form factor in its class of PAs at 1.62 cubic inches and provides 5 watts of RF power for CW and near-constant-envelope waveforms from 1.0 to 2.5 GHz. Based on the latest gallium nitride (GaN) technology, this solid state power amplifier (SSPA) module boasts high DC-to-RF power efficiency of up to 30% and micro-miniature packaging, making it ideal for size, weight, and power (SWaP)-constrained broadband RF telemetry and tactical communication systems applications. The NuPower LS5MI01 Micro PA extends the communication range of a wide variety of L-band and S-band transmitters and transceivers. In fact, the NuPower LS5MI01 Micro PA has been tested and approved by L-3 Communications for use with its Bandit digital data link transceiver, of which the NuPower LS5MI01 Micro PA can effectively provide twice the range. All NuPower PAs come standard with a Micro-D interface cable with 18″ flying leads. Available options for the PA include a +30 dBm / 1 W input drive level version (P/N: NW‐PA‐LS‐5‐MI01‐D30), a fan-cooled heat sink, and an interface cable assembly with banana plug terminations for lab testing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
37 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
26 - 30
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
1000 MHz
Specifications Output Power Typ
5 W
Specifications Rf Connector Options
SSMC (Female)
Specifications Size Lx W X H
1.80 x 1.80 x 0.50 Inch
Specifications Weight
1.2 oz
