NuPower™ LS5MI01-D30 Power Amplifier
NuPower™ LS5MI01-D30 Power Amplifier
SKU:NUP-e725ee
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ LS5MI01-D30 Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ LS5MI01-D30 Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

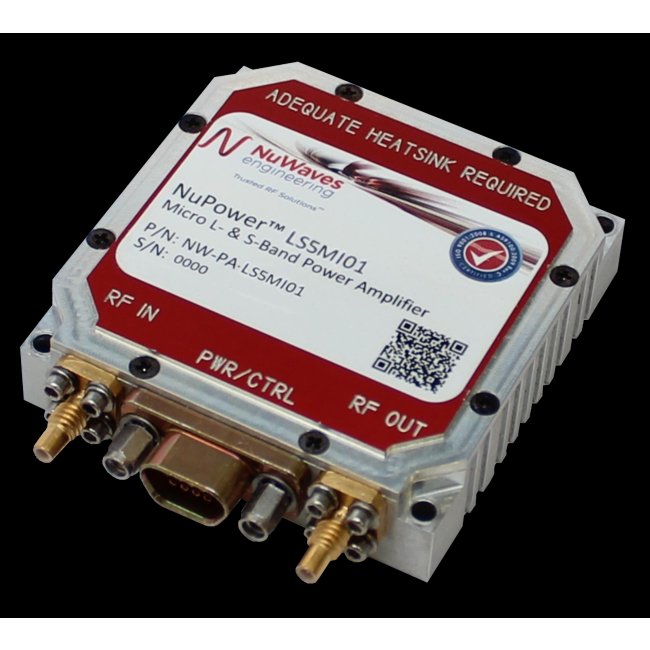

The NuPower™ LS5MI01-D30 Micro L- & S-band radio frequency (RF) power amplifier boasts the industry’s smallest form factor in its class of PAs at 1.62 cubic inches and provides 5 watts of RF power for CW and near-constant-envelope waveforms from 1.0 to 2.5 GHz. The NuPower LS5MI01-D30 module accepts a nominal +30 dBm input drive level from the transmitter/transceiver and provides 7 dB of gain to generate at least 5 watts, and typically 7 watts, across the entire operating band. Based on the latest gallium nitride (GaN) technology, this solid state power amplifier (SSPA) module boasts high DC-to-RF power efficiency of up to 30% and micro-miniature packaging, making it ideal for size, weight, and power (SWaP)-constrained broadband RF telemetry and tactical communication systems applications. The NuPower LS5MI01-D30 Micro PA extends the communication range of a wide variety of L-band and S-band transmitters and transceivers. In fact, the NuPower LS5MI01-D30 Micro PA has been tested and approved by L-3 Communications for use with its Bandit digital data link transceiver, of which the NuPower LS5MI01-D30 Micro PA can effectively provide twice the range. Double the range of your 1 Watt transmitter or transceiver by requesting a quote today! All NuPower PAs come standard with a Micro-D interface cable with 18″ flying leads. An available option for this PA is an accessory kit (NW-PA-ACC-KT01), which includes a fan-cooled heat sink and an interface cable assembly with banana plug terminations for lab testing. *Please see the NuPower LS5MI01 Micro L- & S-Band Power Amplifier if your system needs a PA with the standard 0 dBm input drive level*
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
7 dB
Specifications Input Drive
30 dBM
Specifications Input Supply
26 - 30
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
1000 MHz
Specifications Output Power Typ
5 W
Specifications Rf Connector Options
SSMC (Female)
Specifications Size Lx W X H
1.80 x 1.80 x 0.50 Inch
Specifications Weight
1.2 oz
