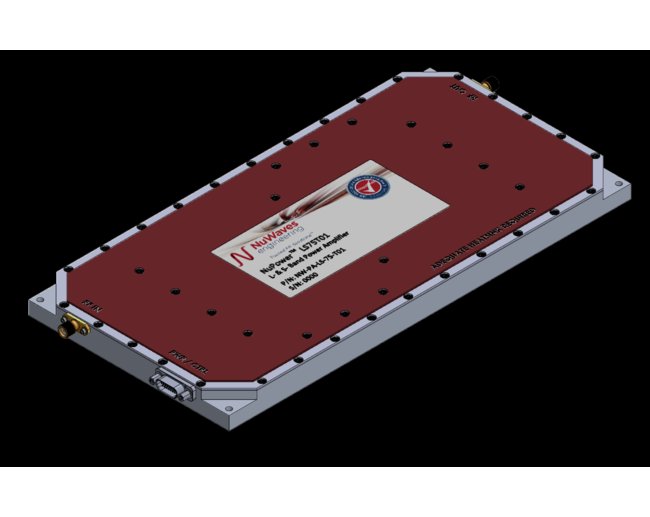

NuPower™ LS75T01 Power Amplifier
NuPower™ LS75T01 Power Amplifier
SKU:NUP-b92230
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ LS75T01 Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ LS75T01 Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NuPower™ LS75T01 is a small, highly efficient, solid state power amplifier that provides 100 watts of RF power to boost performance of data links and transmitters. The NuPower LS75T01 Power Amplifier accepts a nominal +3 dBm (2 mW) RF input and provides ~50 dB of gain from 800 MHz to 2500 MHz. This module handles both constant envelope and complex waveforms such as OFDM, QAM, DVB-T, etc. Based on the latest gallium nitride (GaN) technology, the NuPower LS75T01’s 40% power efficiency at rated power and
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
46 dB
Specifications Input Drive
3 dBM
Specifications Input Supply
27 - 32
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
800 MHz
Specifications Output Power Typ
75 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
5.0 x 10.0 x 0.61 Inch
Specifications Weight
21 oz
