NuPower Xtender™ C15RX01 Bidirectional Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower Xtender™ C15RX01 Bidirectional Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

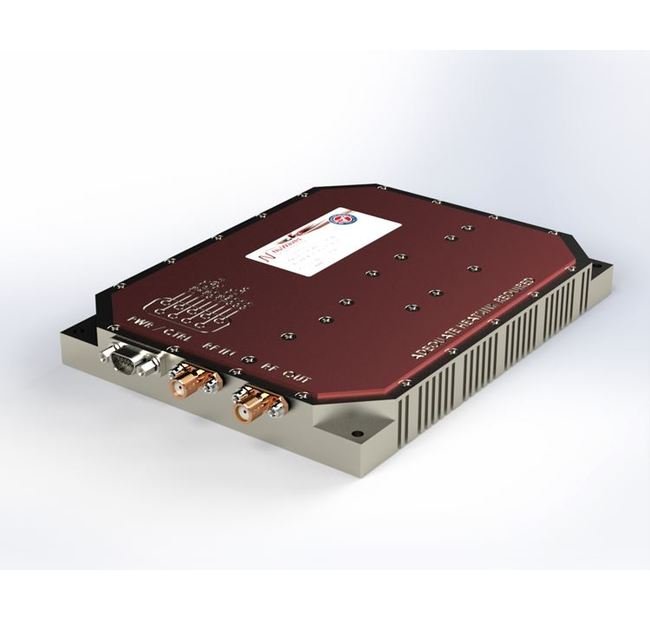

The NuPower Xtender™ C15RX01 Bidirectional C-Band Amplifier module is a small, broadband, high-performance RF amplifier that generates 15 Watts (minimum) of RF power across the C-Band frequency range of 4400 to 4900 MHz. The NuPower Xtender C15RX01 C-Band RF bidirectional amplifier is ideal for extending the communication range of half-duplex transceivers with constant-envelope waveforms (i.e. PSK- and FSK-based modulations, such as SOQPSK and GFSK), and generates 15 Watts of RF transmit power. In receive mode, the NuPower Xtender offers a low noise figure of 3.5 dB and a low noise amplifier that provides 10 dB of gain. The module accepts a nominal +0 dBm input level and provides a minimum of 43 dB of transmit gain, all while operating with 35% or better power efficiency at most frequencies. The NuPower Xtender features manual transmit / receive (T/R) mode selection, coupled with an extremely fast T/R mode switch time of 2 μS. With a small form factor (17.6 cubic inches) and state-of-the-art Gallium Nitride (GaN) power amplifier device technology, the NuPower Xtender Bidirectional C-Band PA module is ideal for broadband RF telemetry and communication systems that require reliability and minimal size, weight, and power consumption (SWaP).
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
43 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
27 - 32
Specifications Maximum Frequency
4900 MHz
Specifications Minimum Frequency
4400 MHz
Specifications Output Power Typ
15 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
5.5 x 4.25 x 0.68 Inch
Specifications Weight
10.5 oz
