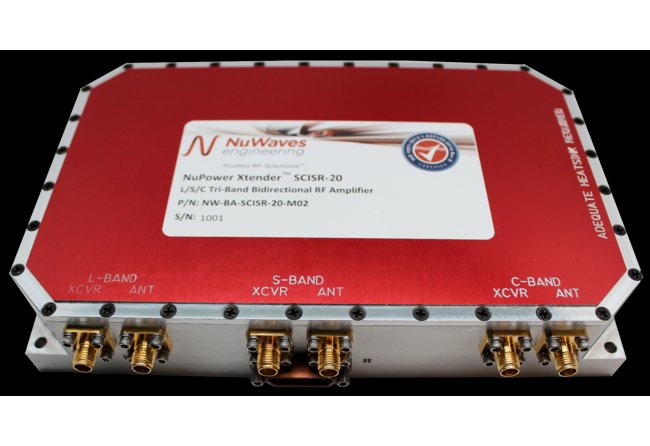

The NuPower Xtender™ SCISR-20 Tri-Band Bidirectional Amplifier is a unique and versatile amplifier designed to support secure CDL ISR (SCISR) software-defined radio communications but can be used in any L-, S-, and/or C-band application. The SCISR-20 simultaneously provides over 20 watts of RF transmit power, over 15 dB of receive gain, and features auto-sense T/R switching.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
C-Band: 10 dB | L-Band: 17 dB | S-Band: 15 dB
Specifications Input Drive
30 dBM
Specifications Input Supply
27 - 32
Specifications Maximum Frequency
C-Band: 5100 MHz | L-Band: 1999 MHz | S-Band: 2500 MHz
Specifications Minimum Frequency
C-Band: 4400 MHz | L-Band: 1000 MHz | S-Band: 2000 MHz
Specifications Output Power Typ
C-Band: 10 W | L-Band: 20 W | S-Band: 20 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
7.25 x 4.25 x 1.375 Inch
Specifications Technology
Gallium Nitride (GaN)
Specifications Weight
34 oz
