NuPower Xtender™ VU4GX02 Bidirectional Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower Xtender™ VU4GX02 Bidirectional Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

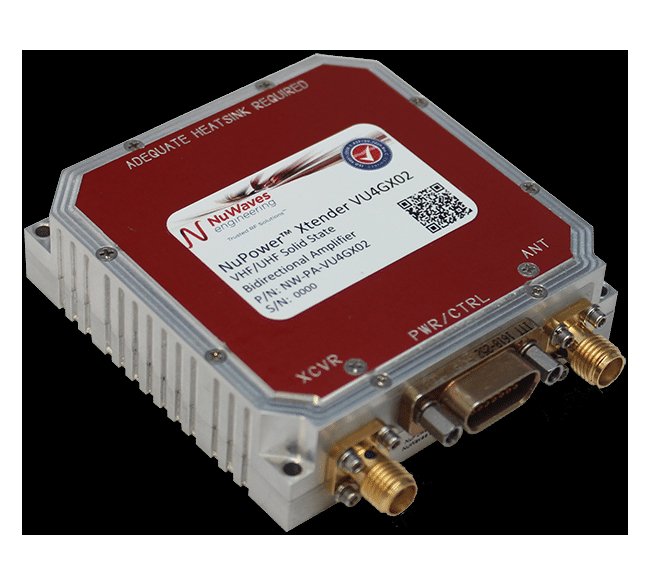

The NuPower Xtender™ VU4GX02 VHF/UHF Bidirectional Amplifier module generates 16 watts of saturated RF power and 4 watts linear across the 225 to 512 MHz frequency range. The NuPower Xtender VU4GX02 is ideal for extending the communication range of half-duplex transceivers with constant-envelope waveforms (i.e. PSK- and FSK-based modulations, such as SOQPSK and GFSK), and generates 16 Watts of RF transmit power (4 W linear). The module accepts a +5 dBm input level and provides 35 dB of transmit gain, all while operating with 30% or better power efficiency at most frequencies. In receive mode, the NuPower Xtender offers a low noise figure of 3.5 dB and incorporates a low noise amplifier that provides 15 dB of gain. The NuPower Xtender VHF/UHF bidirectional amplifier features manual transmit/receive (T/R) mode selection, coupled with an extremely fast T/R mode switch time of 2 μS. With a small form factor (3.8 cubic inches) and state-of-the-art Gallium Nitride (GaN) power amplifier device technology, the NuPower Xtender VHF/UHF Bidirectional Amplifier module is ideal for broadband RF telemetry and communication systems that require reliability and minimal size, weight, and power consumption (SWaP).
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
36 dB
Specifications Input Drive
5 dBM
Specifications Input Supply
10 - 32
Specifications Maximum Frequency
512 MHz
Specifications Minimum Frequency
225 MHz
Specifications Output Power Typ
16 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
2.34 x 2.34 x 0.70 Inch
Specifications Weight
2.4 oz
