NUTR Series Yoke Type Track Roller Bearings
NUTR Series Yoke Type Track Roller Bearings
SKU:TRA-f86355
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Claim Your Seller Account
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
40800 N
Basic Load Rating Static Cor Basic Load Rating
58500 N

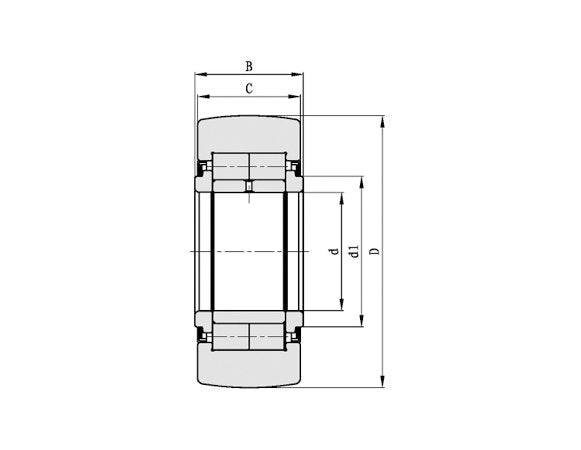

Boundary Dimensions Dimension D1
31 mm
Inner Ring Bore Diameter
25 mm
Inner Ring Dimension Di
30.2 mm
Inner Ring Overall Bearing Width
16.1 mm | 25 mm
Outer Ring Dimension C
24 mm
Outer Ring Dimension D2
36.5 mm
Outer Ring Dimension De
40.2 mm
Outer Ring Dimension Le
16.1 mm
Outer Ring Outside Diameter
52 mm
Roller Dimension I
2 mm
Roller Dimension Lw
10 mm
Roller Dimension Z
27 mm
Specifications Mass
281 g
Specifications Oil Limiting Speed
3400 rpm
Specifications Shaft Diameter
52 mm
Specifications Type
Without Inner Ring (IR)
Thrust Ring Inner Diameter Id
25.2 mm
Thrust Ring Outer Diameter Od
34.5 mm
Thrust Ring Step
31 mm
Thrust Ring Width
4.45 mm
