NUTR Series Yoke Type Track Roller Bearings
NUTR Series Yoke Type Track Roller Bearings
SKU:TRA-e73e7a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Claim Your Seller Account
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
56800 N
Basic Load Rating Static Cor Basic Load Rating
77500 N

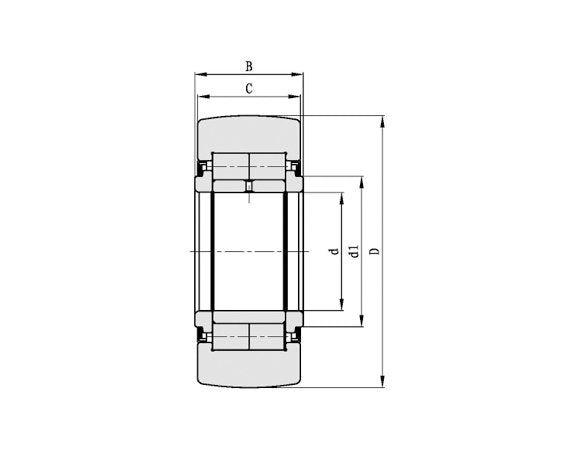

Boundary Dimensions Dimension D1
38 mm
Inner Ring Bore Diameter
30 mm
Inner Ring Dimension Di
35.15 mm
Inner Ring Overall Bearing Width
18 mm | 29 mm
Outer Ring Dimension C
28 mm
Outer Ring Dimension D2
43.7 mm
Outer Ring Dimension De
48.15 mm
Outer Ring Dimension Le
18 mm
Outer Ring Outside Diameter
62 mm
Roller Dimension I
2 mm
Roller Dimension Lw
18 mm
Roller Dimension Z
19 mm
Specifications Mass
465 g
Specifications Oil Limiting Speed
2600 rpm
Specifications Shaft Diameter
62 mm
Specifications Type
Without Inner Ring (IR)
Thrust Ring Inner Diameter Id
30.2 mm
Thrust Ring Outer Diameter Od
41.7 mm
Thrust Ring Step
38 mm
Thrust Ring Width
5.45 mm
