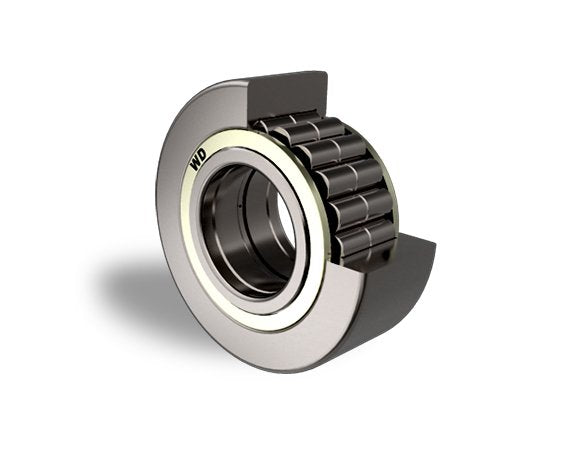

NUTR Series Yoke Type Track Roller Bearings
NUTR Series Yoke Type Track Roller Bearings
SKU:TRA-317ac8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Claim Your Seller Account
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
36900 N
Basic Load Rating Static Cor Basic Load Rating
48900 N

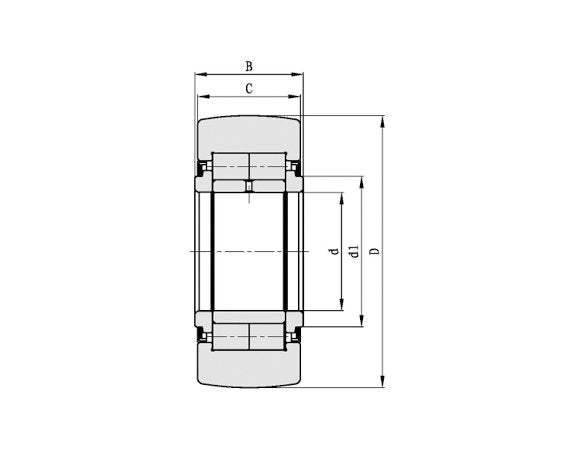

Boundary Dimensions Dimension D1
27 mm
Inner Ring Bore Diameter
20 mm
Inner Ring Overall Bearing Width
25 mm
Outer Ring Dimension C
24 mm
Outer Ring Outside Diameter
47 mm
Specifications Mass
245 g
Specifications Oil Limiting Speed
4200 rpm
Specifications Shaft Diameter
47 mm
Specifications Type
Without Inner Ring (IR)
