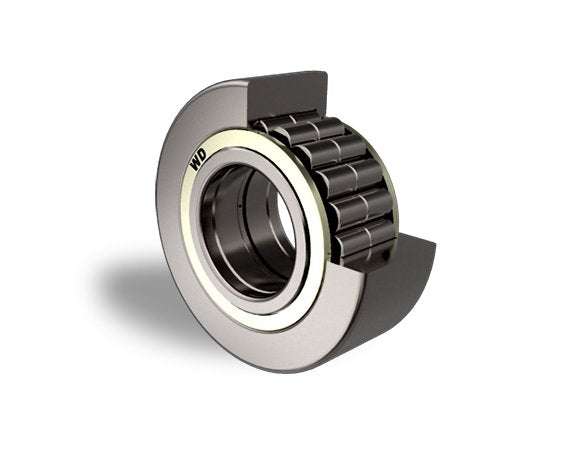

NUTR Series Yoke Type Track Roller Bearings
NUTR Series Yoke Type Track Roller Bearings
SKU:TRA-9c602d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Claim Your Seller Account
NUTR Series Yoke Type Track Roller Bearings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
87900 N
Basic Load Rating Static Cor Basic Load Rating
108000 N

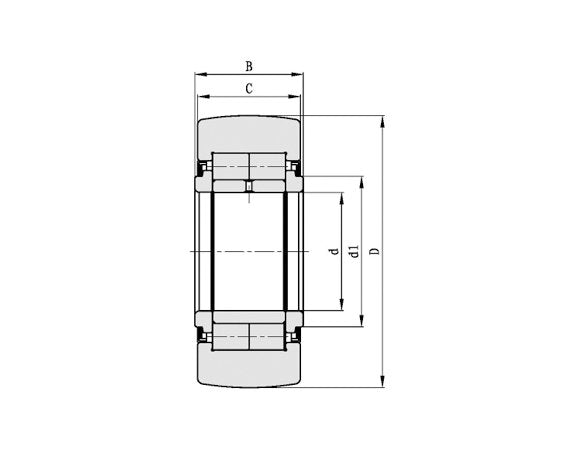

Boundary Dimensions Dimension D1
51 mm
Inner Ring Bore Diameter
40 mm
Inner Ring Dimension Di
47.7 mm
Inner Ring Overall Bearing Width
22.1 mm | 32 mm
Outer Ring Dimension C
30 mm
Outer Ring Dimension D2
57.5 mm
Outer Ring Dimension De
62.7 mm
Outer Ring Dimension Le
22 mm
Outer Ring Outside Diameter
80 mm
Roller Dimension I
2 mm
Roller Dimension Lw
11 mm
Roller Dimension Z
27 mm
Specifications Mass
816 g
Specifications Oil Limiting Speed
1600 rpm
Specifications Shaft Diameter
80 mm
Specifications Type
Without Inner Ring (IR)
Thrust Ring Inner Diameter Id
40.2 mm
Thrust Ring Outer Diameter Od
55 mm
Thrust Ring Step
50.5 mm
Thrust Ring Width
4.95 mm
