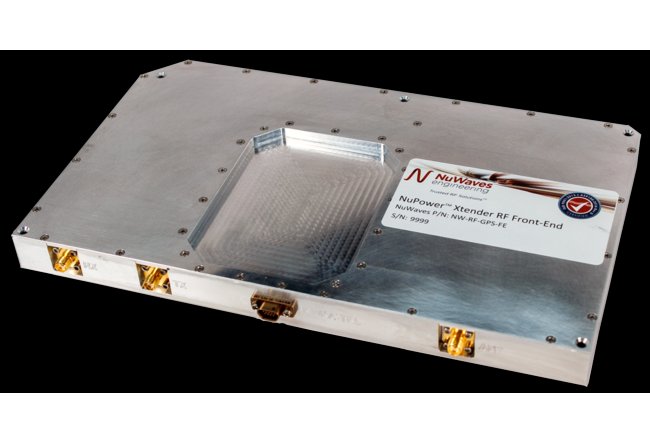

The NuWaves Satellite Terminal RF Front End is a highly efficient, high gain RF transmit/receive module that provides 20 watts of RF power to boost performance of data links. This high performance RF front end is a powerful combination of our NuPower 13G05A RF power amplifier, low noise figure LNAs, a high isolation diplexer between the transmit and receive paths, and band-reject filters. This module accepts a nominal 0 dBm (1 mW) RF input and provides 43 dB of transmit gain from 1626.5 to 1675 MHz, and provides 47 dB of receive gain from 1518 to 1559 MHz. It supports both constant envelope and complex waveforms such as APSK, QAM, DVB-T, etc.
Product Specifications
Specifications Export Classification
EAR99
Specifications Minimum Output Power
20 W
Specifications Receive Frequency
1518 to 1559 MHz
Specifications Receive Gain Typ
47 dB
Specifications Transmit Frequency
1626.5 to 1675 MHz
Specifications Transmit Gain Typ
43 dB
