Nylon 02 Series Edge Board Mount with .187 Chassis Hole
Nylon 02 Series Edge Board Mount with .187 Chassis Hole
SKU:01C-d4ba76
Effortlessly install Nylon 02 Series Edge Board Mount for efficient circuit board support. UL94V-2 compliant with ASTM D 4066. Temperature range: -40 to 185F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon 02 Series Edge Board Mount with .187 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Nylon 02 Series Edge Board Mount with .187 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon 02 Series Edge Board Mount with .187 Chassis Hole is a versatile and durable circuit board support solution. This product is designed for easy hand installation, reducing assembly time significantly. Made from rugged Nylon 66 material, this mount is UL94V-2 compliant (UL94V-0 available), ensuring high safety standards. With ASTM D 4066 and PA111 certifications, it offers reliable performance over a temperature range of -40 to 185F (-40 to 85C). The dimensions and panel thickness make it suitable for various chassis thicknesses, providing flexibility and stability in electronic assemblies.
Ready to Grow Without Cash Flow Constraints?

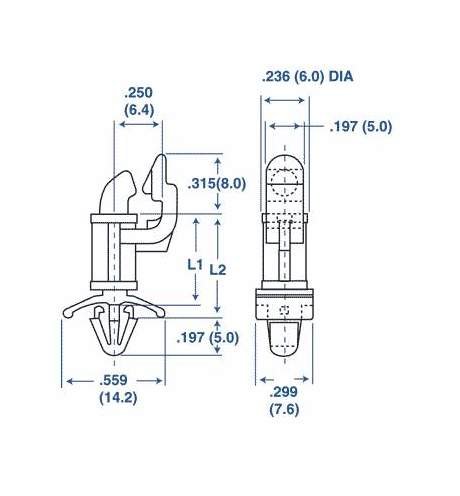

Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L1
.315 (8.0) inches (mm)
Specifications Dim L2
.406 (10.3) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
