Nylon 66 Circuit Board Supports with .187 Chassis Hole

Name: Nylon 66 Circuit Board Supports with .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-597bd0
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-597bd0

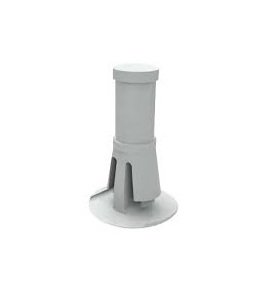

High-quality Nylon 66 circuit board supports with .187 chassis hole. RoHS compliant and UL listed. Ideal for secure PCB mounting.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

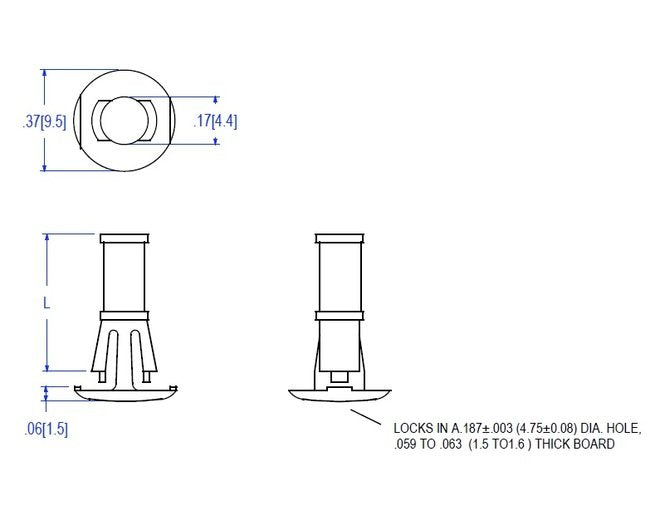

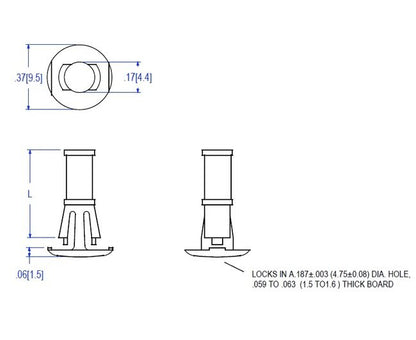

The 68 Series: .187 Chassis Hole is a set of reliable Reverse PCB Support Spacers designed for circuit board applications. Featuring a chassis hole diameter of .187 inches (4.8mm) and a panel thickness of .062 inches (1.6mm), these spacers provide secure support for circuit boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this product is UL listed (File No: E41938) and RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), these spacers offer durability and stability for various electronic setups.

Product Specifications

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications L 015

.500 (12.7) inches (mm)

Specifications Panel Thickness

.062 (1.6) inches (mm)

Nylon 66 Circuit Board Supports with .187 Chassis Hole
