Nylon 66 Dual Locking Board Support .187 Board Hole x .187 Chassis Hole

Name: Nylon 66 Dual Locking Board Support .187 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-2729de
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-2729de

Secure your circuit boards with ease using the Nylon 66 Dual Locking Board Support from the 19 Series. Easy to install and release, compliant with ASTM and RoHS standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon 66 Dual Locking Board Support from the 19 Series is a reliable solution for securing circuit boards. Featuring a board hole diameter of .187 inches (4.8mm) for both ends, this support is easily installed by hand and designed for quick release during repairs. Made of UL94V-2 compliant material, with UL94V-0 available upon request, this product meets ASTM and RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), it offers exceptional durability and stability for various applications.

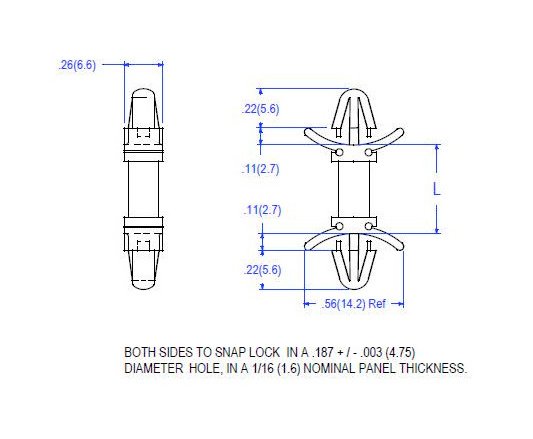

Product Specifications

Specifications Board Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Color

Natural

Specifications Dim L

.750 (19) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Nylon 66 Dual Locking Board Support .187 Board Hole x .187 Chassis Hole
