Nylon 66 Edge Board Mount for Circuit Boards - .187 Chassis Hole
Nylon 66 Edge Board Mount for Circuit Boards - .187 Chassis Hole
SKU:01C-8ca97d
Securely mount circuit boards with the Nylon 66 Edge Board Mount. Easy installation, RoHS compliant, and durable material.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Nylon 66 Edge Board Mount for Circuit Boards - .187 Chassis Hole
$9.99
Quantity: 1
Claim Your Seller Account
Nylon 66 Edge Board Mount for Circuit Boards - .187 Chassis Hole
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 03 Series: Edge Board Mount x .187 Chassis Hole offers easy manual installation and secure locking to PC board edges. Made of UL94V-2 Nylon 66 material (UL94V-0 optional), this circuit board support is ASTM D 4066 and PA111 compliant. With RoHS certification and operating temperatures ranging from -40 to 185F (-40 to 85C), it provides durability and reliability for various applications.

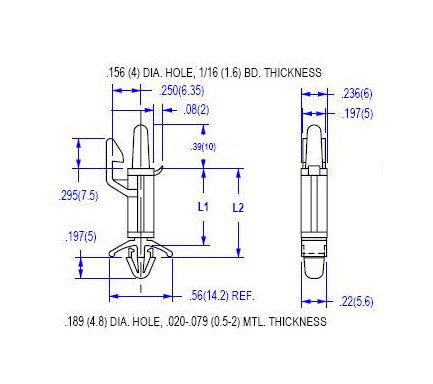

Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
Natural
Specifications Dim L1
.315 (8.0) inches (mm)
Specifications Dim L2
.406 (10.3) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
