Nylon 66 Metric Dual Locking Support Post - 4mm Board & Chassis Hole (27 Series)

Name: Nylon 66 Metric Dual Locking Support Post - 4mm Board & Chassis Hole (27 Series)
Brand: All Electronics Hardware
SKU: 01C-e31328
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-e31328

Secure and durable Nylon 66 Metric Dual Locking Support Post for circuit board mounting. UL94V-2 compliant with a 4mm Mounting Hole at both ends.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

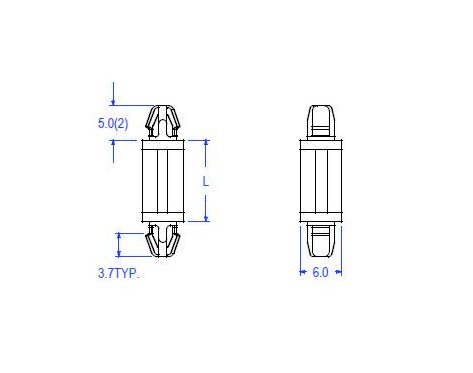

The Nylon 66 Metric Dual Locking Support Post from our 27 Series is designed for secure and reliable mounting in circuit board applications. Featuring a 4mm Mounting Hole on both ends, this post ensures a stable connection. Compliant with UL94V-2 standards (V-0 available), RoHS Compliant, and with a temperature range of -40 to 185 F, this support post provides durability and safety. Packaged in 1000/bag, this post is ideal for institutional and government procurement needs.

Product Specifications

Specifications Color

Natural

Specifications Dim L

4.0 ± .38 mm

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

4.0 mm

Specifications Pt Panel Thickness

1.6 mm

Specifications Remarks Panel Thickness

Nominal Thickness, Panel thickness is for both ends.
