Nylon 66 Wide Wire Saddle - 04 Series

Name: Nylon 66 Wide Wire Saddle - 04 Series
Brand: All Electronics Hardware
SKU: 03W-e579ed
Price: 34.99 USD
Availability: OutOfStock

SKU:03W-e579ed

Secure wires with ease using our Nylon 66 Wide Wire Saddle. UL94V-0 rated for safety. Ideal for tight spaces.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon 66 Wide Wire Saddle from the 04 Series offers a wide entry for easy wire insertion, accommodating side or funnel entry of wires. Its side locking design ensures secure wire positioning while allowing for easy release. With minimal board protrusion, this saddle is ideal for space-constrained applications. Constructed from UL94V-0 rated material, this White wire saddle is designed to meet stringent safety standards.

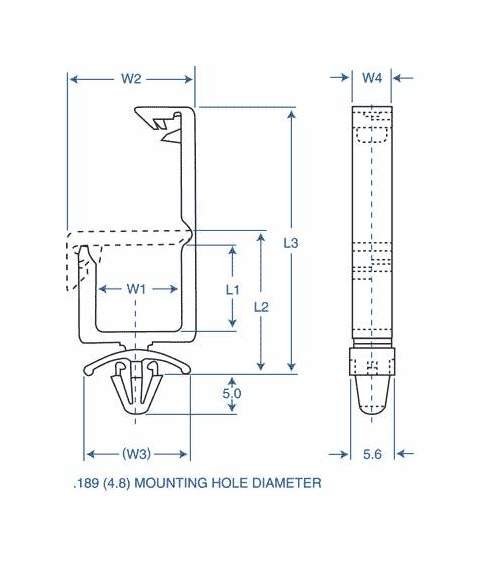

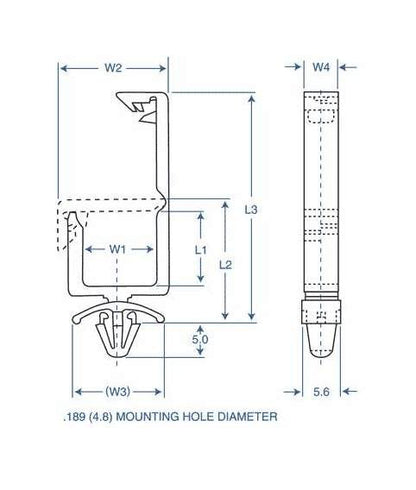

Product Specifications

Specifications Chassis Thickness

.024 - .079 (.6 - 2) inches (mm)

Specifications Color

White

Specifications Dim L1

.906 (23.0) inches (mm)

Specifications Dim L2

1.264 (32.1) inches (mm)

Specifications Dim L3

2.177 (55.3) inches (mm)

Specifications Dim W1

.709 (18.0) inches (mm)

Specifications Dim W2

.965 (24.5) inches (mm)

Specifications Dim W3

.717 (18.2) inches (mm)

Specifications Dim W4

.236 (6.0) inches (mm)

Specifications Material Code

UL94V-0

Nylon 66 Wide Wire Saddle - 04 Series
