Nylon Board and Chassis Hole Supports for Circuit Boards - Set of 500

Name: Nylon Board and Chassis Hole Supports for Circuit Boards - Set of 500
Brand: All Electronics Hardware
SKU: 01C-86d1ad
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-86d1ad

Secure and reliable Nylon supports for circuit boards. Easy installation, RoHS compliant. Pack of 500.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

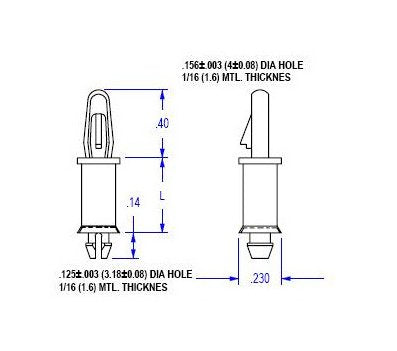

The 17 Series: .156 Board Hole x .125 Chassis Hole supports offer easy manual installation with a secure yet releasable fit for circuit boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D 4066 and PA111 standards, ensuring reliability and durability. With a temperature range of -40 to 185F (-40 to 85C), these supports are RoHS compliant, making them ideal for various applications in both consumer and institutional settings.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.125 (3.2) inches (mm)

Specifications Dim W

.189 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.062 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
