Nylon Board Supports for .156 Board Hole x .187 Chassis Hole

Name: Nylon Board Supports for .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-821f30
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-821f30

Secure and durable Nylon Board Supports for .156 Board Hole x .187 Chassis Hole, compliant with RoHS regulations and ASTM standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

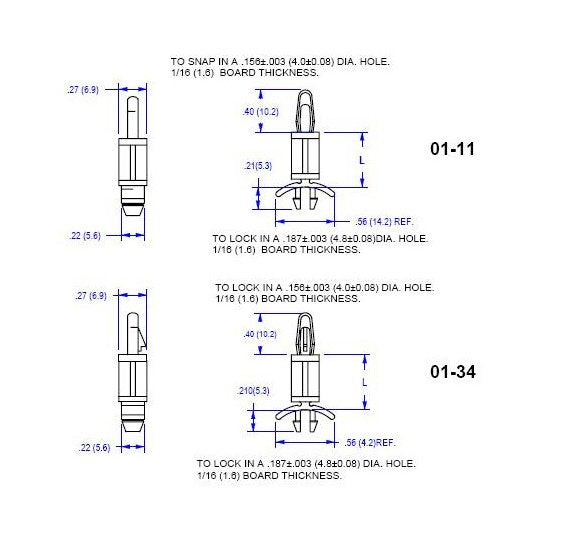

The Nylon Board Supports from our 11 & 34 Series are expertly designed for easy installation by hand. Snap securely into the board with the .156 Board Hole design and lock into place with the .187 Chassis Hole feature, ensuring stability and durability. These supports are releasable for quick repairs, and their Nylon 66 UL94V-2 material construction guarantees high performance. Compliant with RoHS regulations and ASTM D 4066 and PA111 standards, these supports offer a temperature range from -40 to 185F (-40 to 85C), making them ideal for a wide range of applications.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L 015

.625 (15.9) inches (mm)

Specifications Material Code

UL94V-2
