Nylon Chassis Side Board Supports - 6-32 Thread, .156 Board Hole (23 Series)

Name: Nylon Chassis Side Board Supports - 6-32 Thread, .156 Board Hole (23 Series)
Brand: All Electronics Hardware
SKU: 01C-6d58e8
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-6d58e8

Male threaded support posts for secure circuit board mounting. Nylon 66 UL94V-2 material. UL-filed, RoHS compliant, ASTM D4066/PA111 standards. Temp range: -40 to 185F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your circuit board installations with our Nylon Chassis Side Board Supports from the 23 Series. These male threaded support posts feature a 6-32 thread and mate seamlessly with AEH Hex Nuts for secure mounting. Made of Nylon 66 UL94V-2 material, these supports are UL-filed and RoHS compliant. With a mounting hole diameter of .156 inches and a board thickness of .062 inches, they offer durability and reliability. Our supports meet ASTM D4066 and PA111 standards, ensuring quality and performance in a temperature range of -40 to 185F (-40 to 85C). Upgrade your projects with precision and compliance.

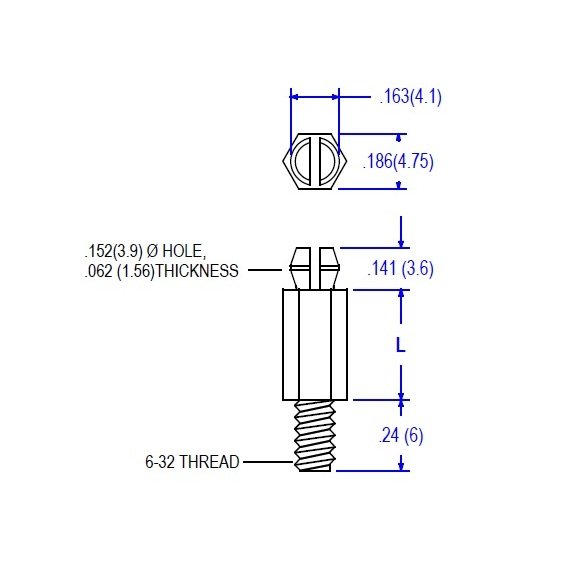

Product Specifications

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

.156 (4.0) inches (mm)

Nylon Chassis Side Board Supports - 6-32 Thread, .156 Board Hole (23 Series)
