Nylon Circuit Board Edge Mount x .187 Chassis Hole Support
Nylon Circuit Board Edge Mount x .187 Chassis Hole Support
SKU:01C-f04e99
Durable Nylon Circuit Board Edge Mount for secure installation and reliable support on PC board edges.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Nylon Circuit Board Edge Mount x .187 Chassis Hole Support
$12.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Edge Mount x .187 Chassis Hole Support
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

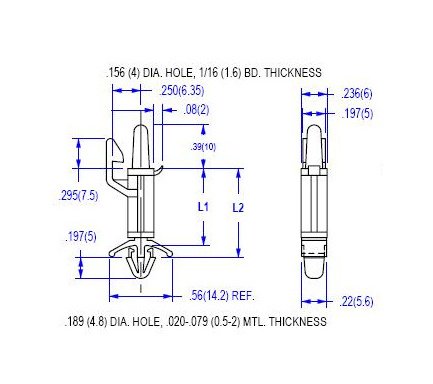

Enhance your circuit board assembly with the Nylon Circuit Board Edge Mount x .187 Chassis Hole Support from the 03 Series. This durable support installs easily by hand and locks securely onto the PC board edge. Made of high-quality Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D4066 and PA111 standards, ensuring reliability in a wide temperature range from -40 to 185F (-40 to 85C). With dimensions of L1: 1.00 inches, L2: 1.09 inches, and compatibility with panel thickness of .063 inches and chassis thickness of .020-.079 inches, this support is an essential component for your circuit board setup.
Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L1
1.00 (25.4) inches (mm)
Specifications Dim L2
1.09 (27.7) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
