Nylon Circuit Board Support .093 Thick PCB
Nylon Circuit Board Support .093 Thick PCB
SKU:01C-4532d5
Nylon circuit board supports for .093 thick PCBs, pack of 1000, RoHS compliant, temp range -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Support .093 Thick PCB
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Support .093 Thick PCB
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Support is designed for .093 thick PCBs, offering reliable support for circuit boards. Each bag contains 1000 supports made of Nylon 66 material, meeting UL94V-2 standards. Optionally available in UL94V-0 grade by adding 'X' to part number, ensuring enhanced fire safety. Compliant with ASTM D 4066, PA111, and RoHS standards for environmental friendliness. With a temperature range of -40 to 185F (-40 to 85C), this support is ideal for various electronic applications.

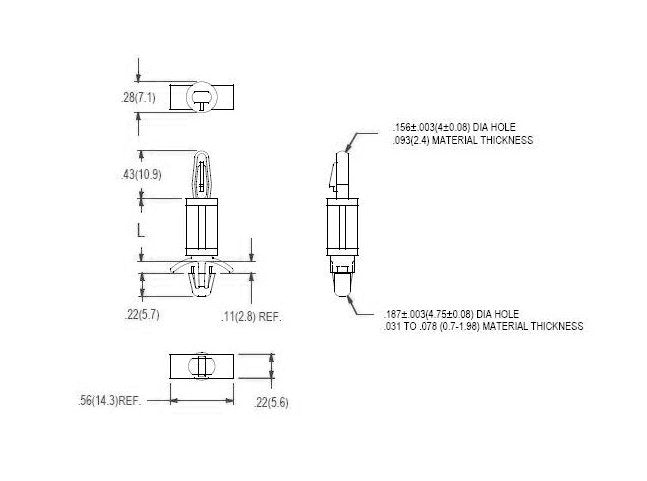

Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.031 - .078 (.7-1.98) inches (mm)
Specifications Dim L 015
.437 (11.1) inches (mm)
