Nylon Circuit Board Support 13-8 Series
Nylon Circuit Board Support 13-8 Series
SKU:01C-4701b7
Secure and durable nylon circuit board support for .062 PCB and .008-.055 chassis. Meets ASTM and RoHS standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Support 13-8 Series
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Support 13-8 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Support 13-8 Series is specifically designed for .062 thick PCBs and chassis ranging from .008 to .055 thick. Each support is crafted from Nylon 66 UL94V-2 material, with UL94V-0 variant available upon request. These supports meet ASTM D 4066 and PA111 standards and are RoHS compliant, ensuring safety and reliability. With a temperature range of -40 to 185F (-40 to 85C), these supports provide durability and stability for your circuit board needs.

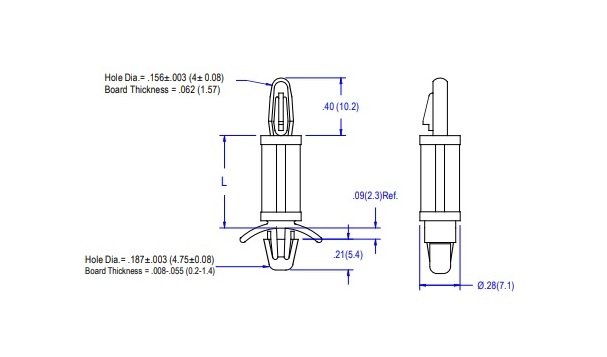

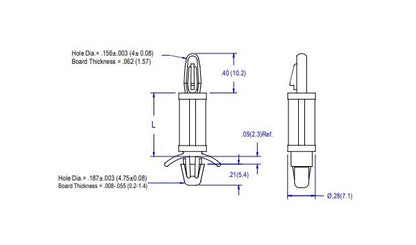

Product Specifications
Specifications Board Thickness
.062(1.6) inches (mm)
Specifications Chassis Thickness
.008-.055 (.2-1.4) inches (mm)
Specifications Dim L 015
1.00 (25.4) inches (mm)
