Nylon Circuit Board Support 13A Series
Nylon Circuit Board Support 13A Series
SKU:01C-ae7ff4
Precision-engineered Nylon Circuit Board Support for .062 thick PCBs, featuring .156 board hole, .187 chassis hole, and RoHS compliance.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Nylon Circuit Board Support 13A Series
$15.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Support 13A Series
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

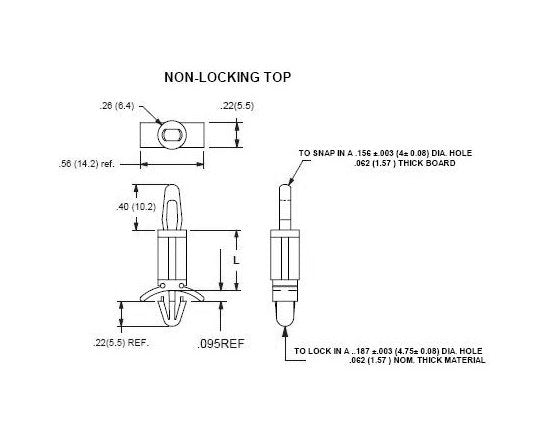

The Nylon Circuit Board Support 13A Series is a precision-engineered solution designed for .062 thick PCBs and chassis. Featuring a .156 board hole and .187 chassis hole, this non-locking top support ensures secure assembly and optimal alignment. Crafted from Nylon 66 UL94V-2 material (UL94V-0 option available), this support meets ASTM D 4066 and PA111 standards, making it RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this support guarantees reliability in various environments.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
1.38 (34.9) inches (mm)
