Nylon Circuit Board Support (13A Series)

Name: Nylon Circuit Board Support (13A Series)
Brand: All Electronics Hardware
SKU: 01C-abf2d9
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-abf2d9

Secure and durable Nylon Circuit Board Support for .062 thick PCBs and chassis. RoHS compliant with wide temperature range.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

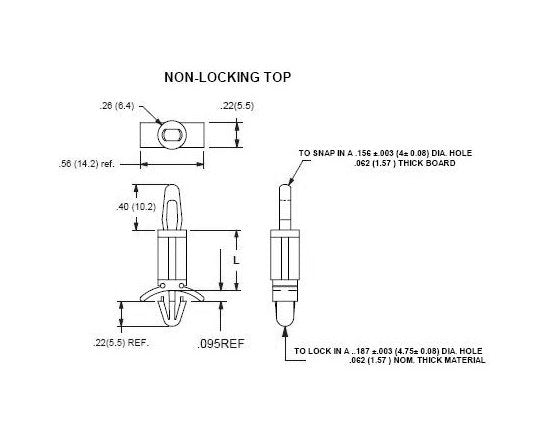

The 13A Series Nylon Circuit Board Support is designed for .062 thick PCBs and .062 thick chassis, providing secure support and stability for electronic components. Snap fit into PCBs and locks into chassis effortlessly, ensuring reliable installation. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C). With a .156 board hole and .187 chassis hole, it meets the stringent standards for durability and functionality.

Product Specifications

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Chassis Thickness

.125 (3.17) inches (mm)

Specifications Dim L 015

.187 (4.8) inches (mm)

Nylon Circuit Board Support (13A Series)
