Nylon Circuit Board Support: .156 PCB Hole x .187 Chassis Hole, 1000-Pack
Nylon Circuit Board Support: .156 PCB Hole x .187 Chassis Hole, 1000-Pack
SKU:01C-61ad62
Stabilize circuit boards with the 19A Series Nylon Support. Pack of 1000, RoHS compliant, -40 to 185°F temp range. Optional UL94V-0 available.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nylon Circuit Board Support: .156 PCB Hole x .187 Chassis Hole, 1000-Pack
$49.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Support: .156 PCB Hole x .187 Chassis Hole, 1000-Pack
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

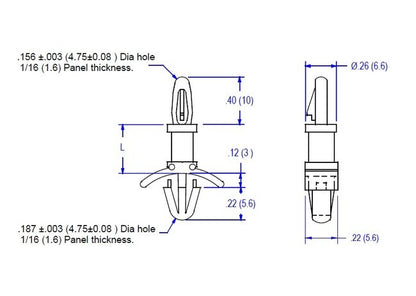

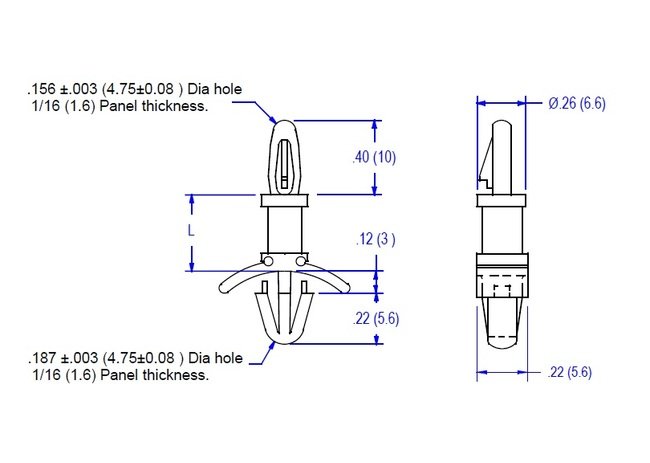

The 19A Series Nylon Circuit Board Support features a .156 PCB hole and .187 chassis hole, providing stability for circuit boards. Made from Nylon 66 UL94V-2, this support is RoHS compliant and meets ASTM standards. With a temperature range of -40 to 185°F, it offers durability in various environments. Optional UL94V-0 material available by adding 'X' to the part number. Each pack contains 1000 supports for convenient use in bulk installations.
Product Specifications
Specifications Dim L 4 Mm
.187 (4.8) inches (mm)
