Nylon Circuit Board Support with .100 Board Hole x Adhesive Base
Nylon Circuit Board Support with .100 Board Hole x Adhesive Base
SKU:01C-2f10a2
Securely mount circuit boards with the Nylon 64 Series Support on an adhesive base. Compliant with UL, ASTM, and RoHS standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Support with .100 Board Hole x Adhesive Base
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Support with .100 Board Hole x Adhesive Base
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

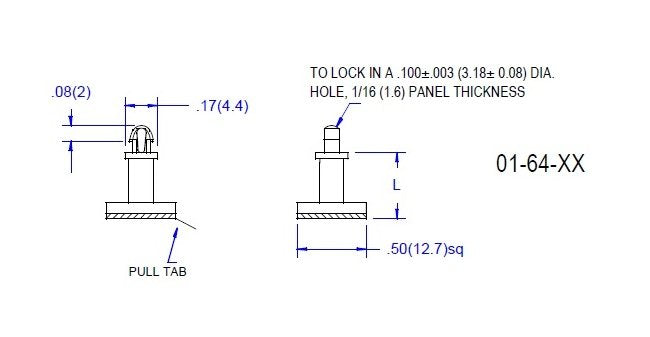

The 64 Series Circuit Board Support offers reliable mounting on an adhesive base, featuring a .100-inch hole for secure attachment to boards with a .062-inch panel thickness. Made of Nylon 66 UL94V-2 material, this support complies with UL File No: E41938, ASTM D 4066, PA111, and RoHS standards. It withstands temperatures from -40 to 185F (-40 to 85C), ensuring durability in various environments.
Product Specifications
Specifications Dim L
.563 (14.3) inches (mm)
