Nylon Circuit Board Support with .125 Board Hole x .187 Chassis Hole
Nylon Circuit Board Support with .125 Board Hole x .187 Chassis Hole
SKU:01C-520aab
Securely support circuit boards with 26 Series Nylon supports. RoHS compliant, durable Nylon 66 design, and ASTM D 4066 PA111 assurance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Support with .125 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Support with .125 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

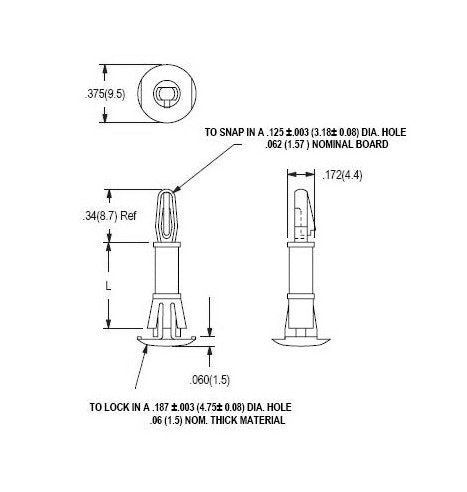

The 26 Series Nylon Circuit Board Support designed with a .125 Board Hole x .187 Chassis Hole offers secure reverse locking ensuring stability during installation. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets RoHS compliance and ASTM D 4066 PA111 standards. With a temperature range of -40 to 185 F (-40 to 85 C), this support guarantees reliability in varied environmental conditions. Each pack contains 1000 supports for your assembly needs.
Product Specifications
Specifications L
.312 (7.9) inches (mm)
