Nylon Circuit Board Support with Adhesive Base, .125/.156 Board Hole
Nylon Circuit Board Support with Adhesive Base, .125/.156 Board Hole
SKU:01C-3fe440
Durable Nylon Circuit Board Support with Adhesive Base for secure mounting. RoHS compliant, suitable for -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Support with Adhesive Base, .125/.156 Board Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Support with Adhesive Base, .125/.156 Board Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

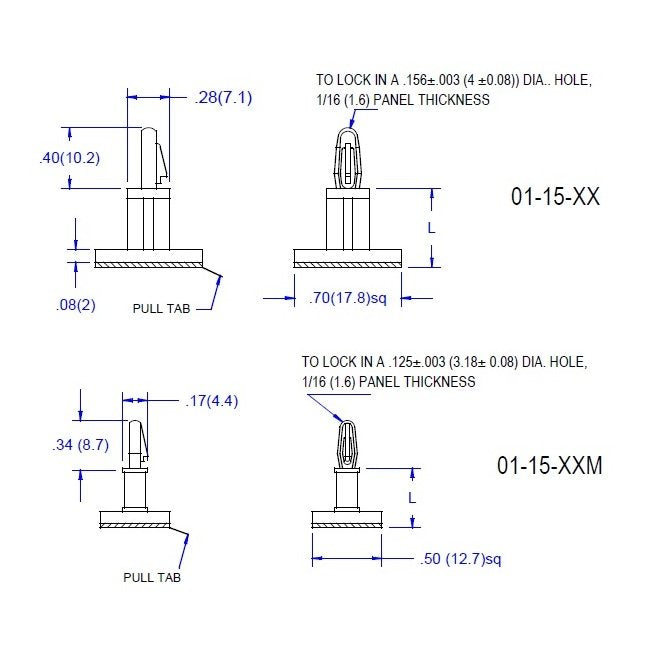

The 15 Series Circuit Board Support is an essential component for securely mounting circuit boards on adhesive bases. Made from Nylon 66 UL94V-2 material, this support ensures durability and reliability in various applications. It features a mounting hole diameter of .125 ± .010 inches and a board thickness of .062 ± .010 inches, meeting industry standards for precise assembly. RoHS compliant and capable of withstanding temperatures from -40 to 185F, this product guarantees safety and performance. Ideal for circuit board installations requiring dependable support.
Product Specifications
Specifications Board Thickness
.062 ± .010 (1.57) inches (mm)
Specifications Dim L
.563 ± .015 (14.3) inches (mm)
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
.125 ± .010 (3.2) inches (mm)
