Nylon Circuit Board Support with Edge Board Mount x .187 Chassis Hole

Name: Nylon Circuit Board Support with Edge Board Mount x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-1d3b56
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-1d3b56

Efficient, durable Nylon Circuit Board Support for secure installation, reducing assembly time. UL94V-2 compliant, with ASTM D 4066, PA111 standards, RoHS compliant, with temp range of -40 to 185F (-40 to 85C).

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 02 Series Nylon Circuit Board Support with Edge Board Mount and .187 Chassis Hole is a versatile and efficient solution for secure installation. This support component is designed for quick and easy manual installation, reducing assembly time and enhancing workflow efficiency. Crafted from durable Nylon 66 material, this support is UL94V-2 compliant, with the option to upgrade to UL94V-0 by adding 'X' to the part number. Meeting ASTM D 4066, PA111 standards, this support is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C). With precise dimensions and a white color finish, this support is suitable for various panel and chassis thicknesses, making it an essential component for reliable circuit board mounting.

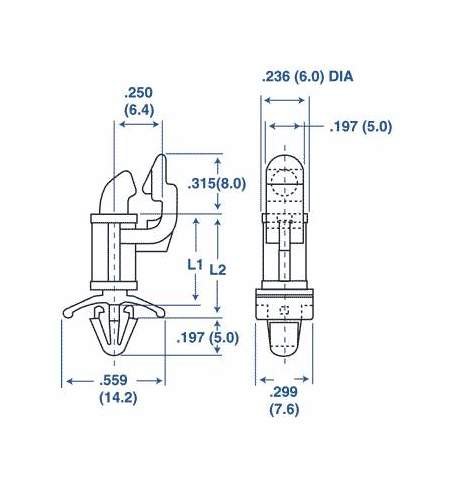

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L1

.378 (9.6) inches (mm)

Specifications Dim L2

.469 (11.9) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 (1.6) inches (mm)

Nylon Circuit Board Support with Edge Board Mount x .187 Chassis Hole
