Nylon Circuit Board Supports, .062 Board Thickness, .125 Chassis Thickness
Nylon Circuit Board Supports, .062 Board Thickness, .125 Chassis Thickness
SKU:01C-07363f
Secure your PCBs with Nylon Circuit Board Supports from the 13-2 Series. Compliant with RoHS, -40 to 185F temp range.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports, .062 Board Thickness, .125 Chassis Thickness
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports, .062 Board Thickness, .125 Chassis Thickness
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

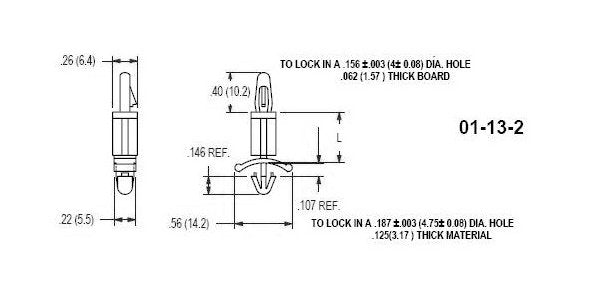

The Nylon Circuit Board Supports from the 13-2 Series are designed to securely fit .062 thick PCBs and .125 thick chassis, providing stability and protection. Made from Nylon 66 UL94V-2 material, these supports ensure reliable performance in various environments. With dimensions of .312 inches and board thickness of .062 inches, they are suitable for a range of applications. These supports comply with RoHS standards and have a temperature range of -40 to 185F (-40 to 85C), making them ideal for both consumer and institutional use.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.312 (7.9) inches (mm)
